Wolf Tooth Camo Direct Mount Spider - White Industries

Camo-WHT

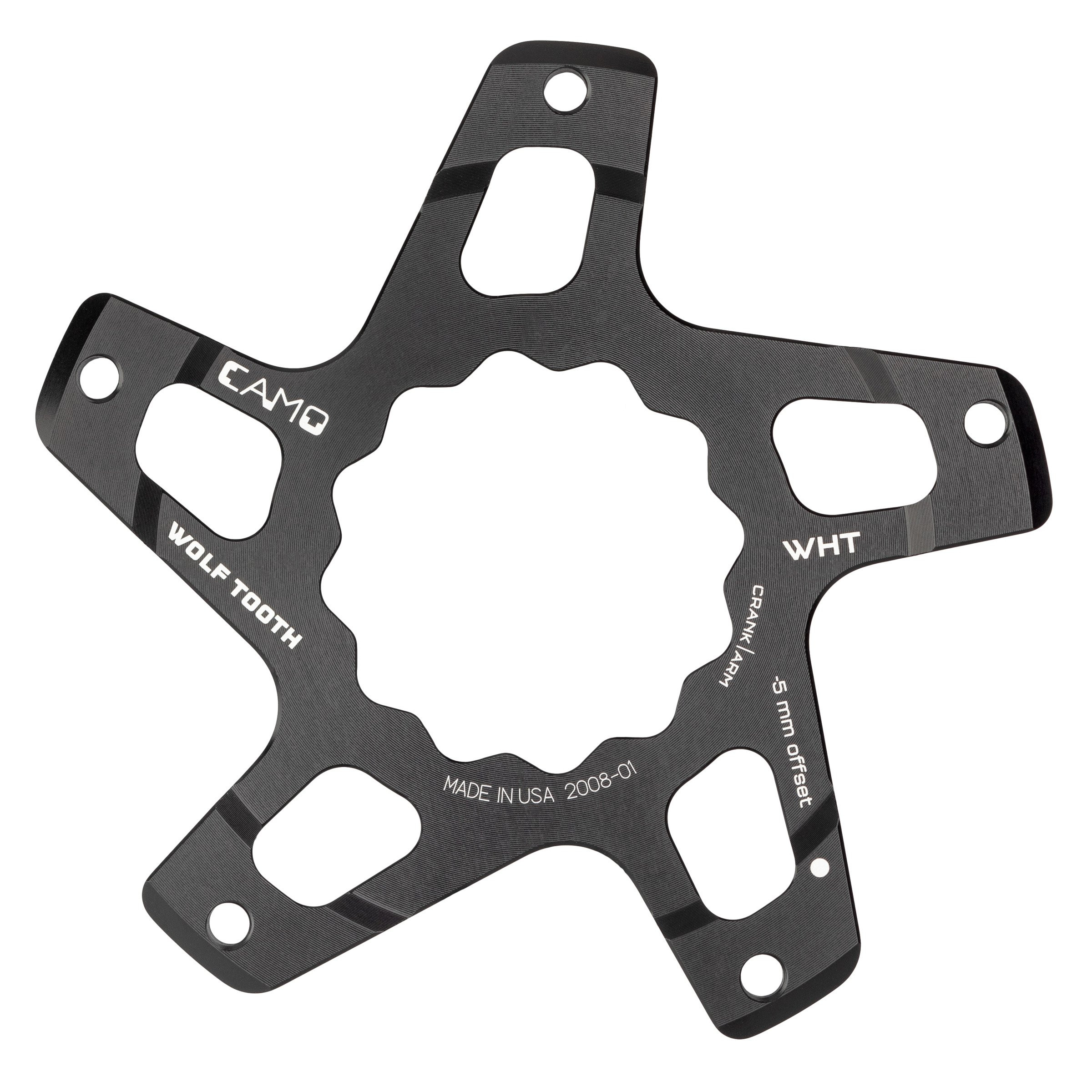

Wolf Tooth Camo Direct Mount Spider - Race Face Cinch Cranks

The CAMO chainring system was created by the Wolf Tooth engineers for Chainline And Material Optimization on direct mount style Chainrings. The key advantages include:

  • Perfect chainline - for wear and shifting precision

  • Optimal material usage - for weight, stiffness, and wear

  • Price - for less expensive replacement chainrings

  • Swapping - Very fast chainring change out with 5 small bolts and no nuts.

  • Wolf Tooth’s patented Drop-Stop®  wide/narrow tooth profile for the ultimate chain retention and mud shedding ability

More details

Shipped within 2-8 days

€ 32,95 tax incl.

Add to wishlist

Data sheet

Color Black

More info

Compatibility

This is a spider for use with the Race Face Cinch system. 3 different chainline options are available. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:

  • M8 (minus 8mm - dished towards the frame) is for standard 49mm chainline.  This is for use on bikes with 135mm QR, 142mm thru axle, and some 148mm bikes.
  • M5 (Boost - minus 5mm - dished towards the frame) is for 52mm chainline that boost bikes may need.  This link explaining 148mm "Boost" spacing will help you decide if you need the M5 or M8.
  • P2 (plus 2mm - dished outwards away from the frame) is for fat bikes that have 190/197 rear spacing but use a 100mm spindle. This is now very common on production fat bikes to keep the q-factor slimmer

The CAMO mounting bolts for these can be purchased separately, but all the CAMO spiders come with stainless steel bolts if you don't order them.

Specs:

  • Weight - M8 - 32g, M5- 28g, P2 - 28g
  • Material: 7075-T6 aluminium
  • Included: ED coated steel bolts included
