Headsets

Though they are fairly simple components, bicycle headsets can be difficult to understand. There are a vast array of different configurations and sizes, and it can feel quite overwhelming when looking at all the possibilities. In 2010, Cane Creek introduced the Standardized Headset Identification System (SHIS) - an effort to establish a unified classification system by which we describe all modern headsets. The codified name is a series of letters and numbers that describe its relevant dimensions, as well as how it fits into the bike frame.

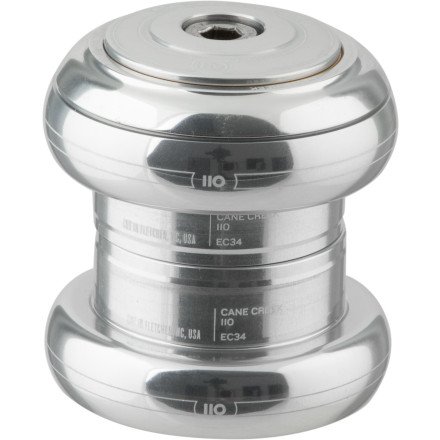

Cane Creek Headset 110 1 1/8 EC34

€199.99

Available in 6 days, delivery time 2-5 days

Product number: BAA0163K

Manufacturer: Cane Creek

Manufacturernumber: BAA0163K

Product information "Cane Creek Headset 110 1 1/8 EC34"

Cane Creek 110 Headset Technical Description
Upper: EC34/28.6/H16/x Lower: EC34/30/H12/x
Top Type EC - External Cup
Top Head Tube Inside Dia. 33.95mm
Stem Clamp Dia. 28.6mm
Top Stack Height 16mm
Top Bearing Type, Top-quality, sealed stainless steel bearings
Bottom Type EC - External Cup
Bottom Head Tube Inside Dia. 33.95mm
Crown Race Seat Dia. 30mm
Crown Race Type Aluminum, Dual-Seal
Bottom Stack Height 12mm
Bottom Bearing Type Top-quality, sealed stainless steel bearings
Material : Alu 7075
Weight 97.46g

Color:	Black
S.H.I.S Lower:	EC34
S.H.I.S Upper:	EC34
