Tumbleweed - Macro Pannier Rack
€192.95
Available in 30 days, delivery time 1-6 days

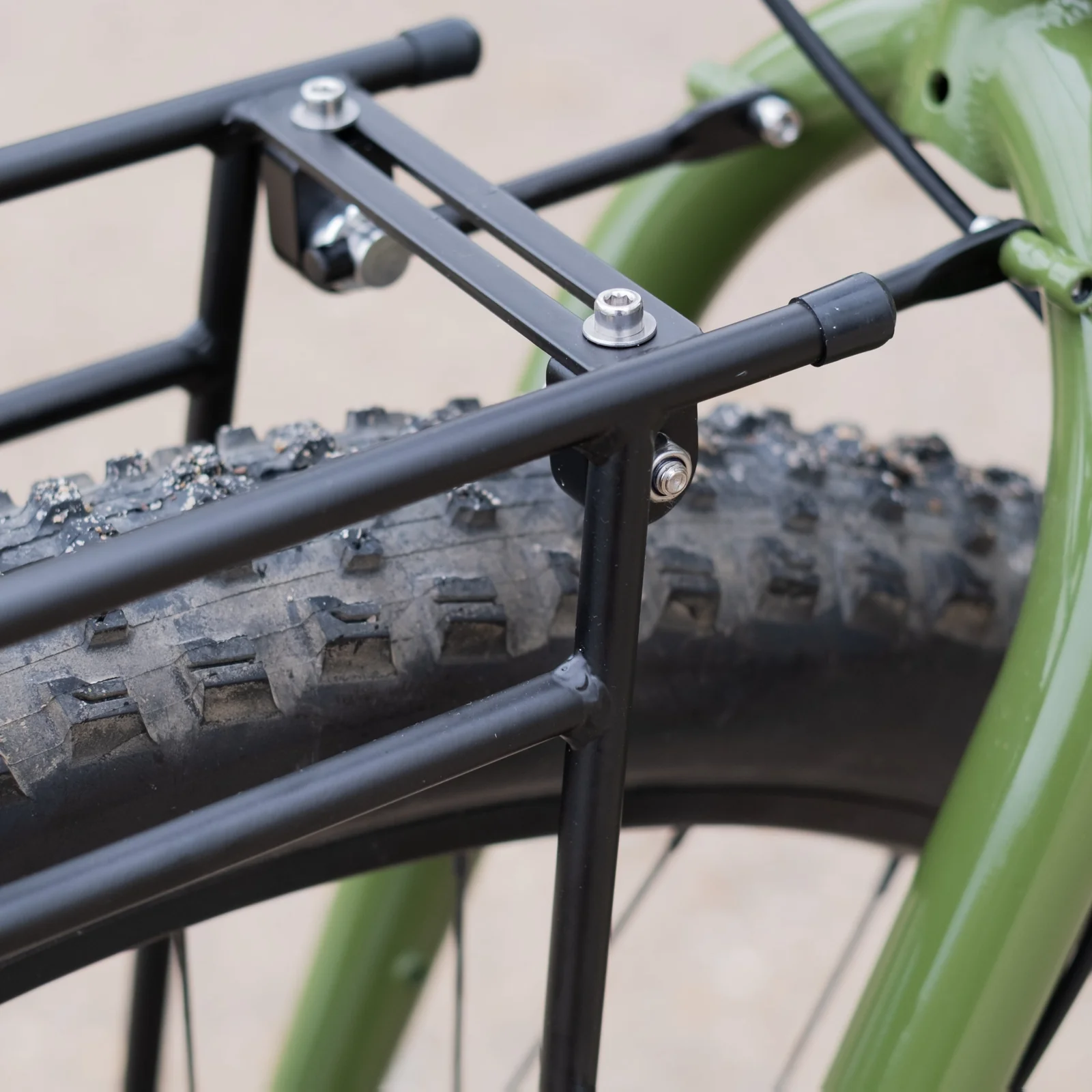

TRackAdapt
This powder coated steel rack adaptor mounts to the center fork crown hole on your steel or aluminum fork (or carbon fork if the manufacturer allows it) and gives you two fork crown mounting points for our rack struts. The adaptor is drilled for an M5 bolt for the fork crown, and includes an M5x45mm bolt (you may need a longer or shorter bolt depending on the thickness of your fork crown) and M5x16mm bolts for attaching our rack struts to the adaptor, as well as nylock nuts and washers.
Product information "Tumbleweed - Macro Pannier Rack"
The Tumbleweed Macro Pannier Rack is a rugged, versatile rack designed to carry heavy loads and larger panniers, ideal for extended expeditions. Building on ten years of proven Pannier Rack design, the Macro increases strength and adds dual mounting flexibility without sacrificing simplicity.
It's our best rack yet. The Macro features wider support legs, a secondary mounting rail, and two mounting locations for panniers. You also get Tumbleweed's signature triple mounting bosses for water bottles or small dry b
Dimensions and weight:
- Platform heights: 355mm and 380mm (center of lower eyelet to center of platform)
- Width: 120mm Length: 310mm , 10mm diameter tubing
- Weight: 593 grams without hardware, 772 grams with all mounting hardware, bolts, and uncut 350mm struts ags.
- All of this adds just 60 gr. over the standard Pannier Rack.
Capacity and mounting:
- Total load limit: 29kg (including 2kg per set of triple bosses)
- Supports traditional-style panniers with elastic lower hook attachment point
- Works with a variety of modern pannier styles and adjustable hardware
Requirements
- The load on the rack platform must be centered over the rack, not overhanging or cantilevered off the end of the platform.
- You’ll need threaded load-bearing mounting points at the dropouts and seatstays or fork crown to properly mount our racks on your bike.
- If you don't have upper rack bosses, seat clamps with integrated rack mounts are available.
| Material: | CroMo |
|---|
