Wheels Manufacturing BB30 Eccentric GXP 24/22mm

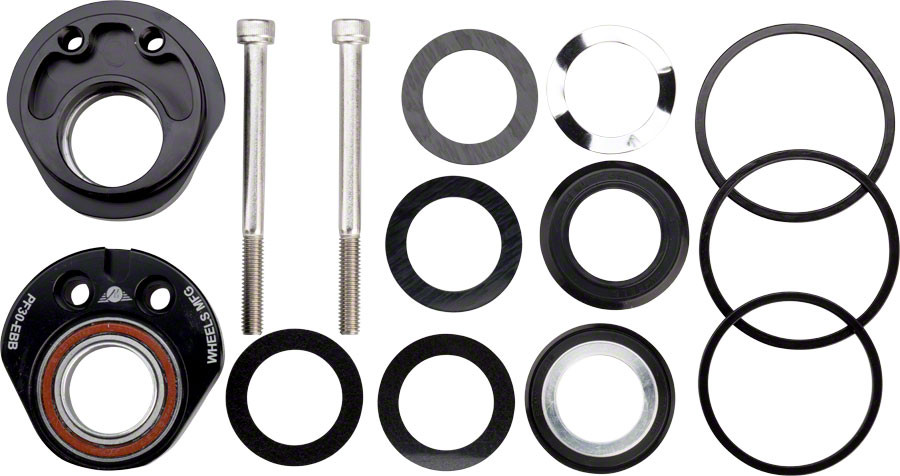

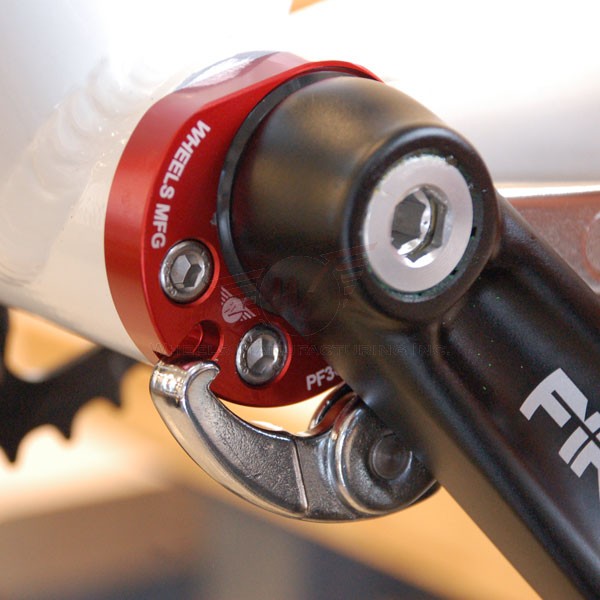

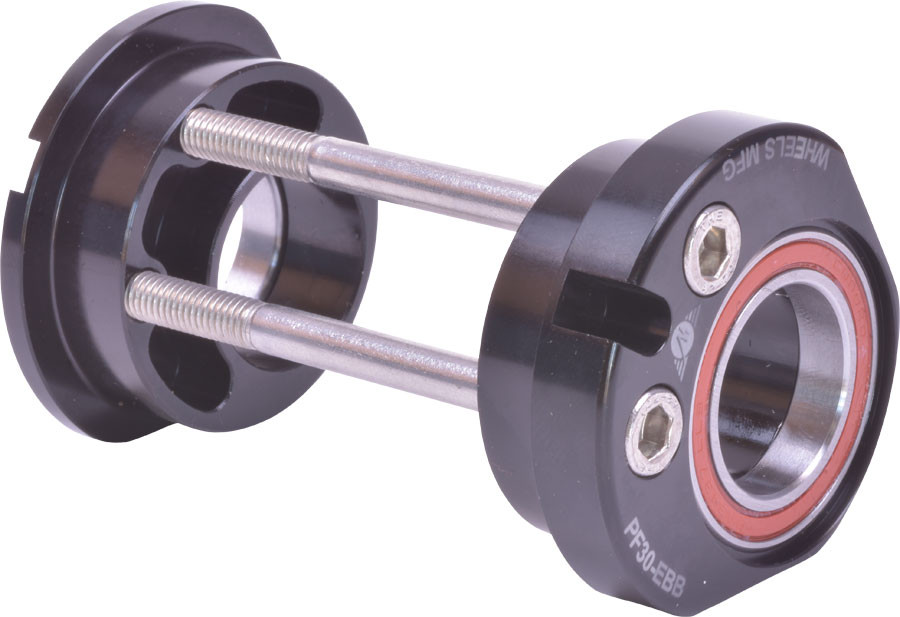

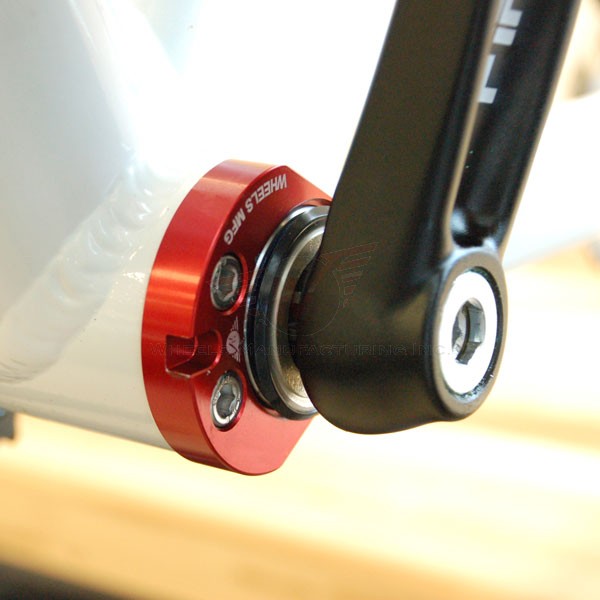

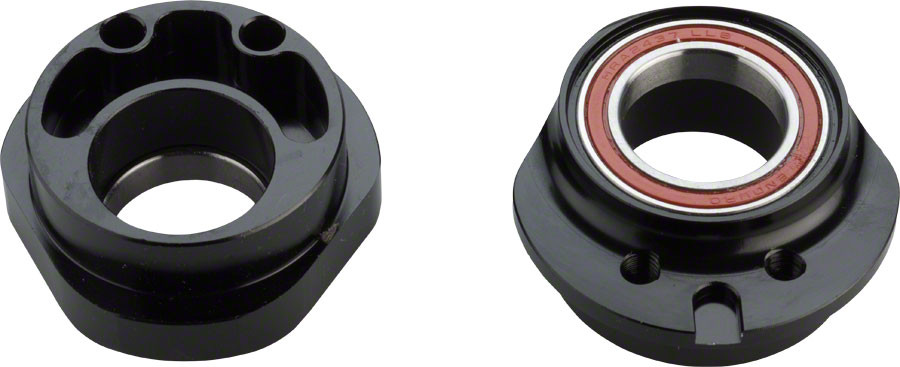

Convert your BB30 frame to a single-speed setup with our simple to use eccentric bottom bracket. Enduro Angular Contact sealed bearings. Double lip seals on all bearings with high fill rate top quality grease for maximum durability. Machined aluminum cups are superior in function and durability to plastic. Fully serviceable.
Notes:
These Eccentric bottom brackets for BB30 frames will not work with frames that do not have removable c-clips in the shell. If your frame has a shell with a molded step that the bearings press up against, our EBB will not completely fit in to the shell.
73mm BB shells require the use of M6 x 80 bolts only. Do not use M6 x 75 bolts in 73mm BB shell, damage to drive side cup threads may occur.
Compatible with the following Bottom Bracket Standards:
- BB30, Specialized Alloy OSBB
Compatible with the following cranksets:
- SRAM GXP
- Truvativ GXP
- Quarq GXP
Specs:
-Bearings: Enduro Angular Contact
- Bottom Bracket/Frame Interface: BB30, Specialized Alloy OSBB
- Bottom Bracket Shell Width (mm): 68mm - 73mm
- Bottom Bracket Shell I.D.: 42mm
- Chain Adjustment: 12mm
- Crank Spindle Type: GXP (SRAM, Truvativ, etc.)
- Crank Spindle Diameter: 22/24mm
- Weight: 182g
