Wheels Manufacturing BB30 Eccentric 24mm Cranks
Convert your BB30 frame to a single-speed setup with our simple to use eccentric bottom bracket. Enduro Angular Contact sealed bearings. Double lip seals on all bearings with high fill rate top quality grease for maximum durability. Machined aluminum cups are superior in function and durability to plastic. Fully serviceable.
Compatible with the following Bottom Bracket Standards:
BB30, Specialized Alloy OSBB
Compatible with the following cranksets:
Shimano HollowTech II
FSA MegaExo
Rotor 3D, Agilis
RaceFace EXI
RaceFace X-Type
Notes:

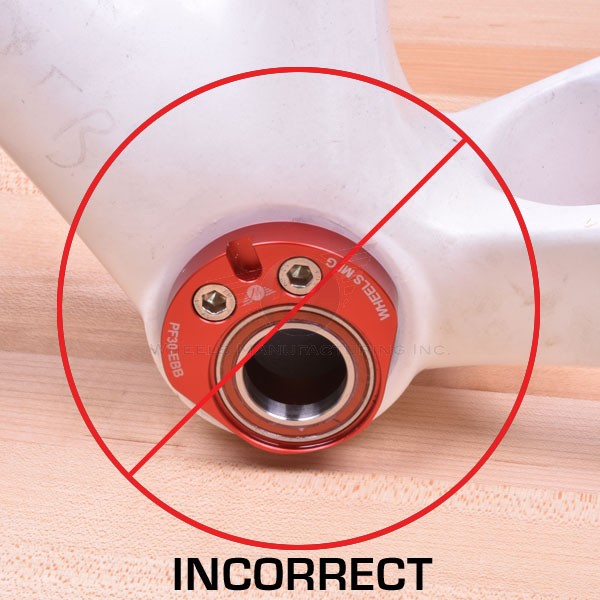

This Eccentric bottom brackets for BB30 frames will not work with frames that do not have removable c-clips in the shell. If your frame has a shell with a molded step that the bearings press up against, our EBB will not completely fit in to the shell.
73mm BB shells require the use of M6 x 80 bolts only. Do not use M6 x 75 bolts in 73mm BB shell, damage to drive side cup threads may occur.
Bearings: Enduro Angular Contact
Bottom Bracket/Frame Interface: BB30, Specialized Alloy OSBB
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 42mm
Chain Adjustment: 12mm
Crank Spindle Type: Shimano Hollowtech II, FSA MegaExo, RaceFace EXI
Crank Spindle Diameter: 24mm
Weight: 172g
