Surly MidNight Special All-Road Frame Kit - Black
Product number:
FM0460
Manufacturer:
Surly
Manufacturernumber:
FM0460
Directly available:
0
Product information "Surly MidNight Special All-Road Frame Kit - Black"
The Midnight Special is a road plus compatible frame, designed to provide comfort and speed on those all-day rides that extend well beyond fresh pavement. It excels on pot-holed, deteriorating pavement and the occasional long stretch of gravel. The Midnight Special matches perfectly with 650b road plus tires, ready to eat up road chatter and absorb all the bumps in the road for a much more comfortable ride.
Specification:
-
- 100% Surly 4130 CroMoly frame, main triangle is double-butted; 1-1/8" threadless CroMoly fork
- 44mm head tube
- Clearance for 650b x 60mm or 700c x 42mm tires without fenders (650b x 50mm or 700c x 32mm with fenders)
- Wheel Size: 650b+ , 700c
- Front Axle: 12mm Thru x 100mm, Rear Axle: 12mm Thru x 142mm

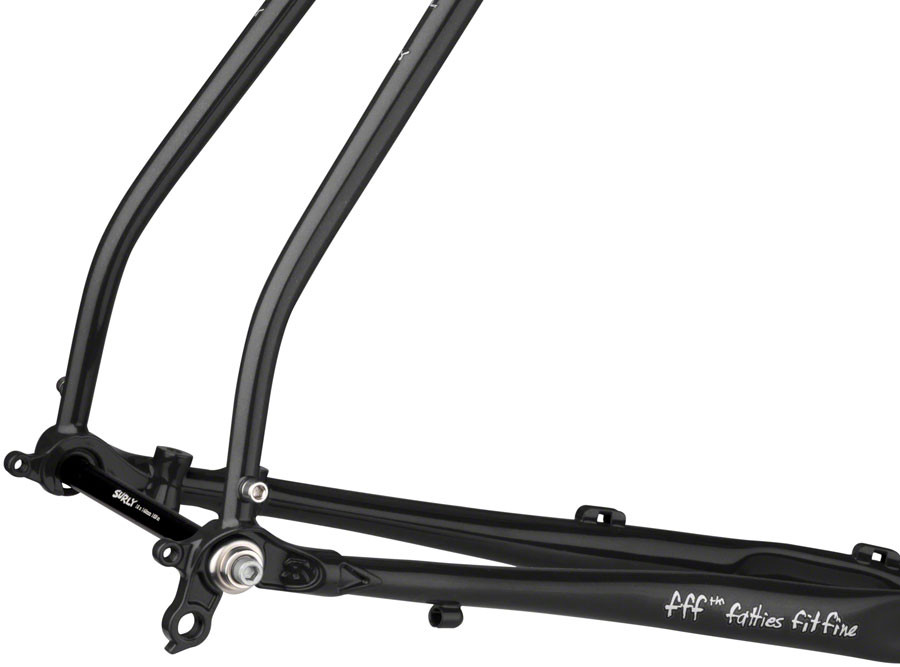

- Rear dropouts: 12mm vertical dropout with derailleur hanger, 142x12mm thru-axle compatible or 135 x 10mm with Surly 10/12 adapter Washer (HU0001)
- Brake compatibility: Flat-Mount disc, 160mm max rotor size
- Braze-ons: Surly Triple Guides on top tube, single cable guides on down tube for full length cable housing. Two sets of Three-Pack mounts seat tube bottle mount (M–XL), upper seatstay threaded barrel bosses.
- Seatpost: 27.2mm, Seatpost clamp: 30.0mm (Surly stainless included)
- Headtube: 44mm I.D. Recommend EC44 lower cups. Zero Stack on top is o.k.
- Front derailleur: 28.6mm, bottom-pull

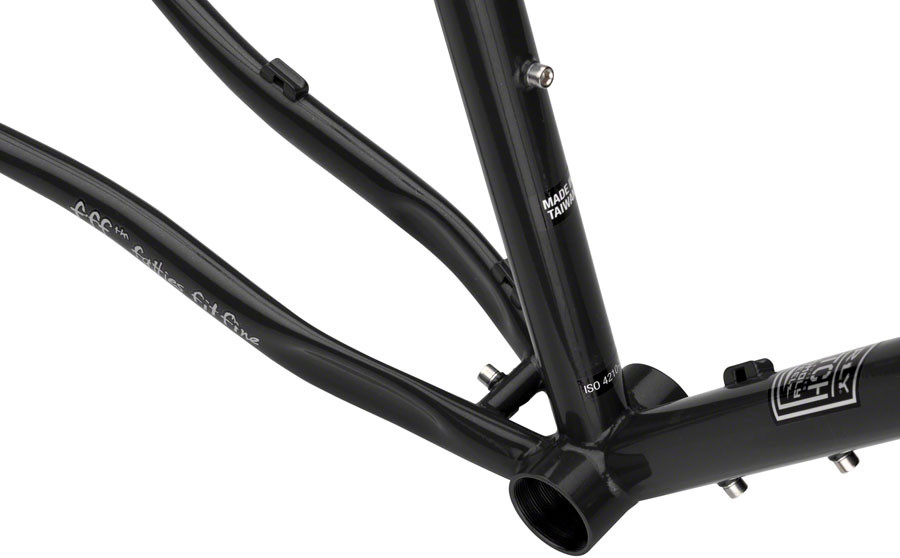

- Bottom bracket shell: 68mm shell width, threaded standard English (1.37" x 24t)
- Chainring clearance: Singlespeed 44t; 34/50t
- Tire clearance: 27.5 x 2.35", 700c x 42mm
- Cargo weight limit: 400 lb combined rider and cargo. Max cargo 200 lb when properly loaded and mounted on suitably strong racks or frame bags.
- FORK COMPATIBILITY:
- Stem clamp: 28.6mm
- Tire clearance: 27.5 x 2.35", 700c x 42mm
- Crown race: 30mm
- Front brake rotor: 51mm I.S., 180mm max rotor size
- Front spacing: 100mm, Axle type: 12mm TA
- Braze-ons: Two sets of Three-Pack mounts; mid-and low-blade fully threaded through-blade fork eyelets
