Productinformatie "Revelate Designs - Hammerhead Harness"

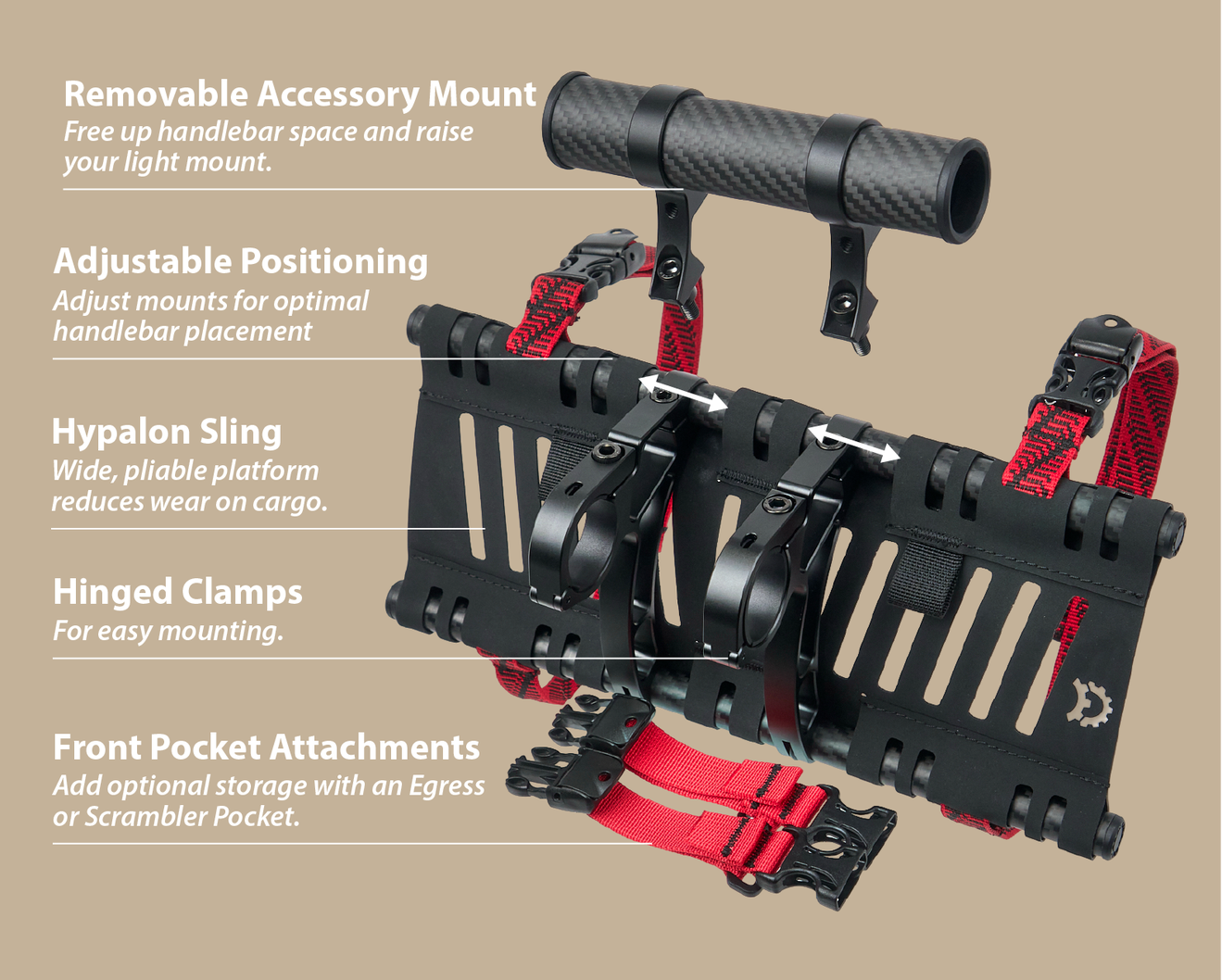

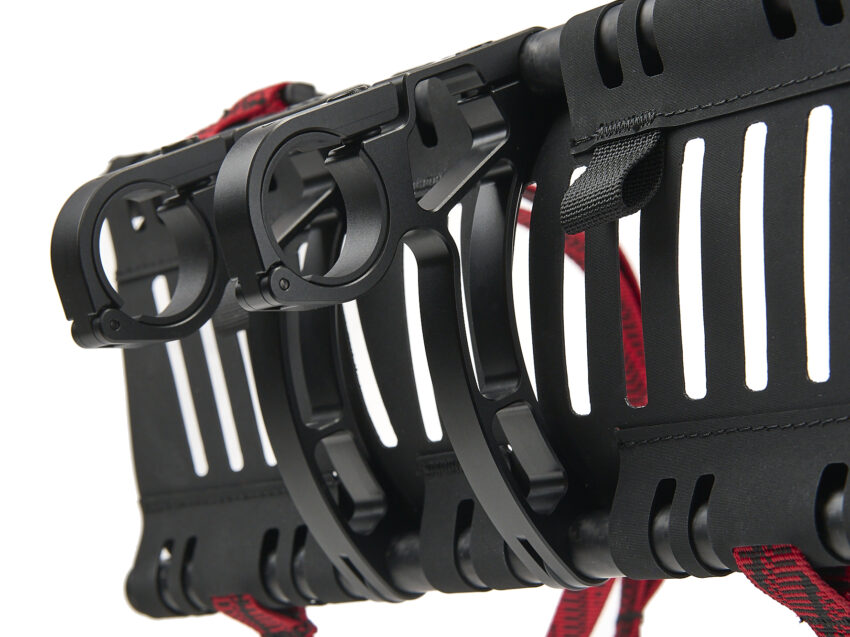

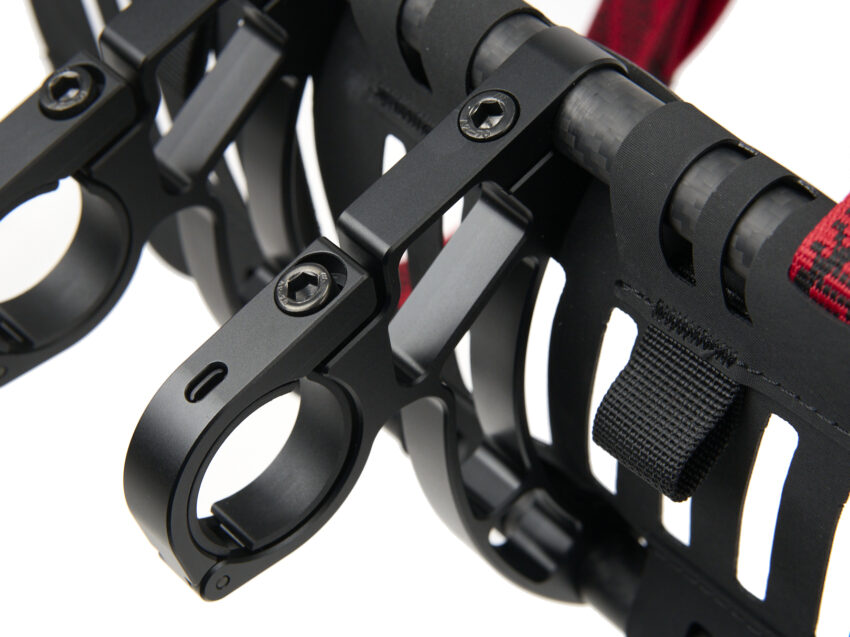

The Hammerhead Harness is a high-performance rigid-mount handlebar harness system. Machined aluminum brackets connect to high-strength carbon fiber tubes to offset your gear from the handlebars and head tube of your bike. The hinged clamp provides width adjustability on the handlebars, and the included shims fit 31.8mm or 35mm handlebars.

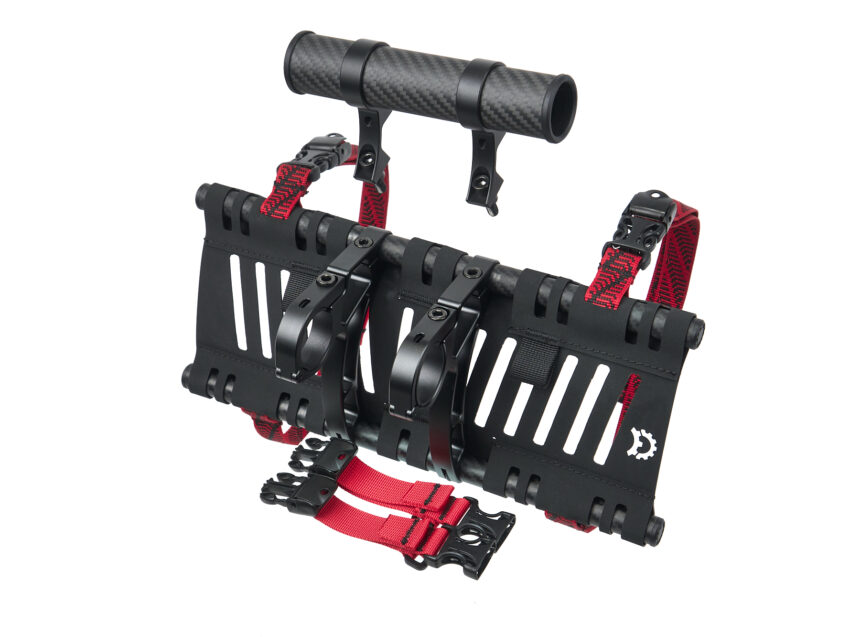

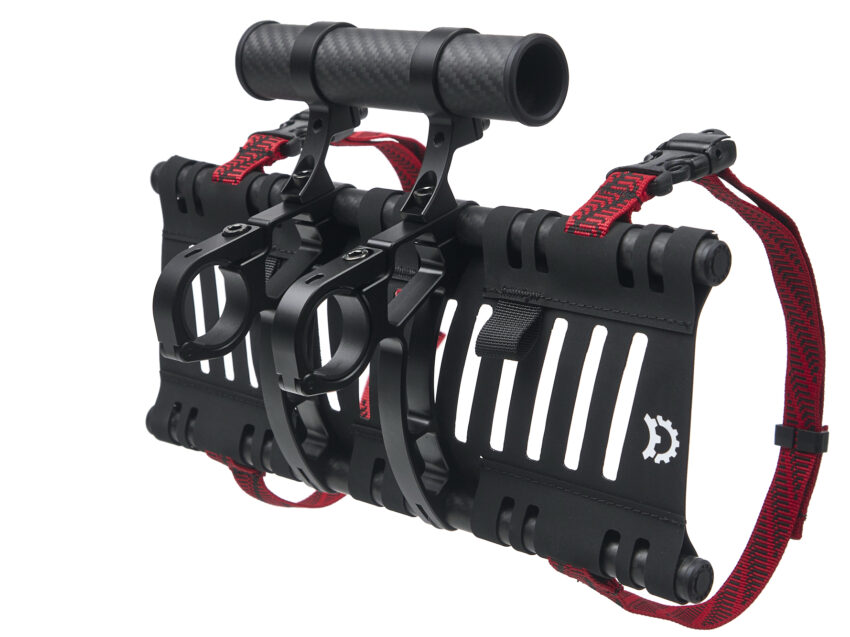

The system comes complete with straps and a robust elevated accessory mount with a 31.8mm clamp diameter. The large diameter accessory mount provides extra grip to light and computer mounts and extends lighting reach over a dry bag. The fabric sling of the harness protects lightweight bags and allows for packing versatility.
Specs:
- Weight: Without Accessory Mount 336 g ,With Accessory Mount 410 g
- Materials: Machined 6061 aluminum clamps and accessory risers, carbon fiber support tubes and accessory mount, Hypalon sling.
Fit notes:
- Fits 35mm bars, and 31.8mm with included shims
- Support tubes width: 12” Light mount height: 3” from top of sling to top of mount tube
- Max bracket spacing: 80mm
- Bracket clamp width: 13mm of straight bar adjacent to stem (each side) is required for mounting
- Holds cargo about 1.5” from bars
- Load limit 8 pounds
- Torque clamp bolts to 3NM
