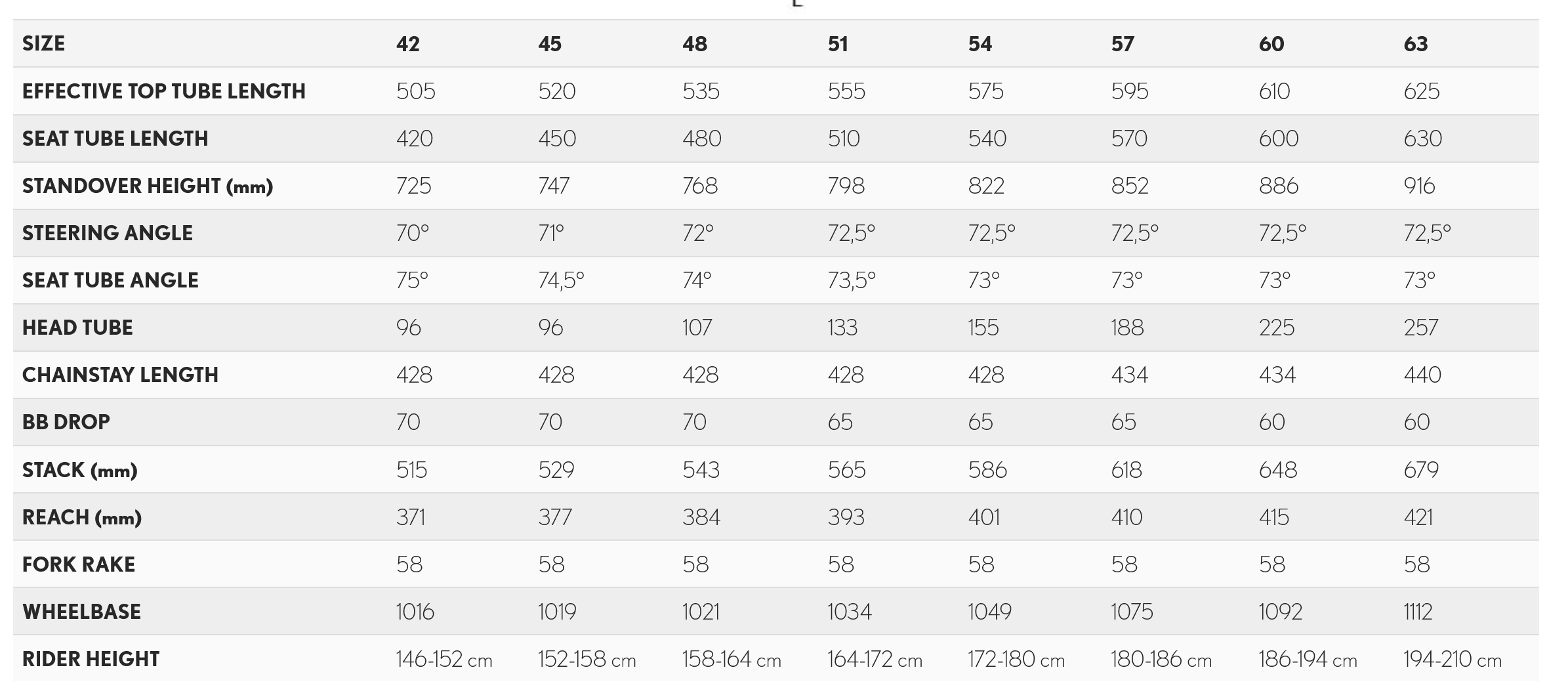

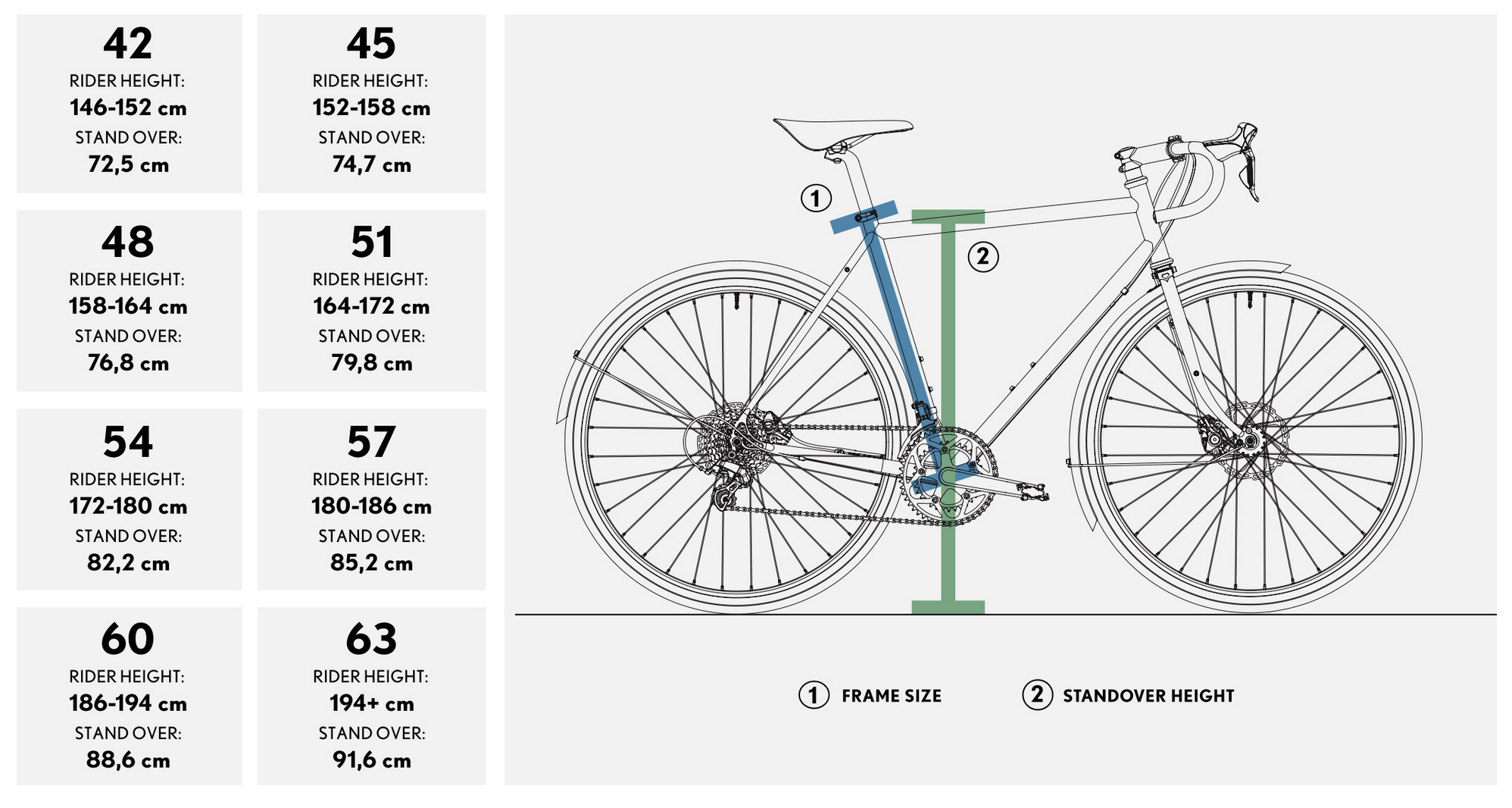

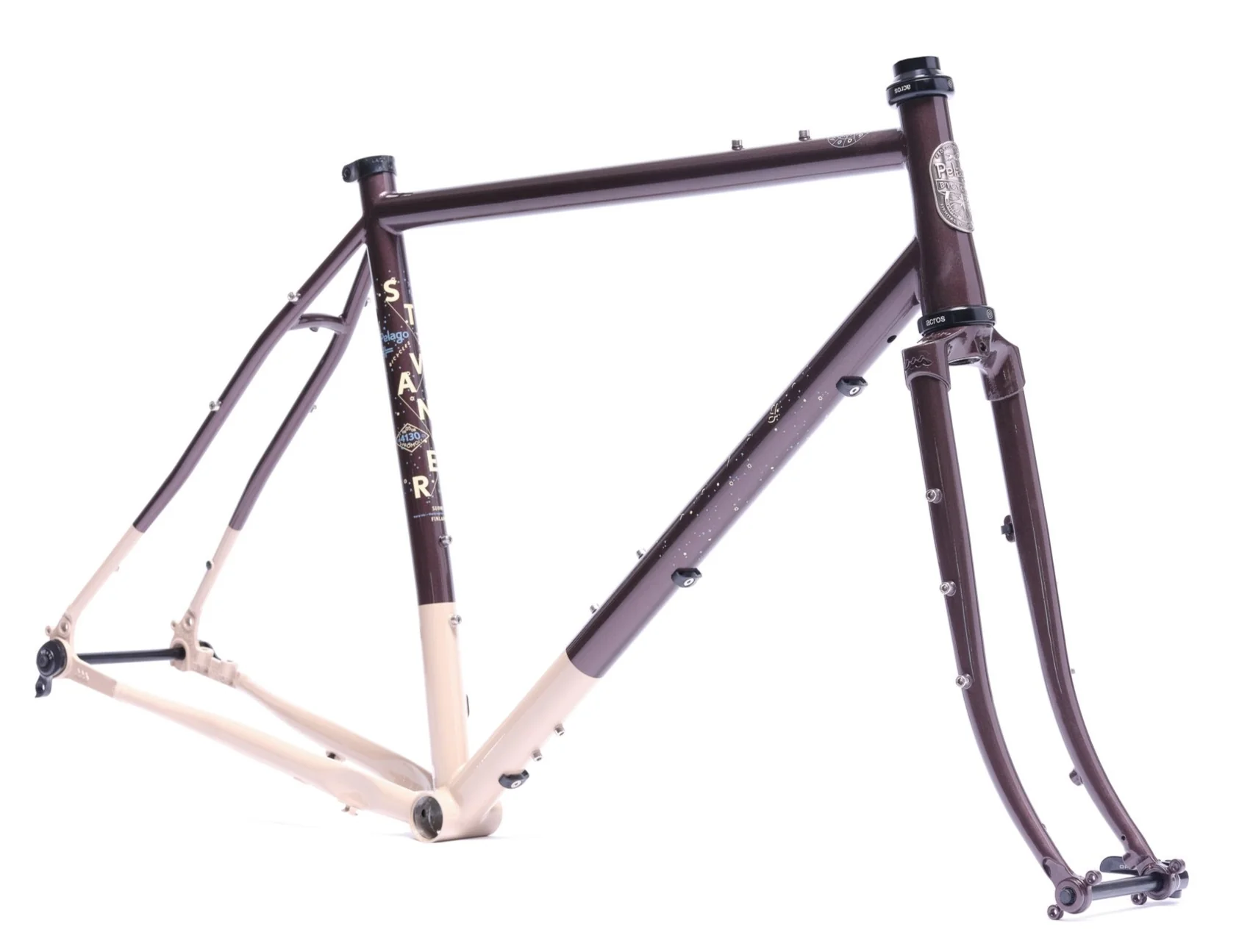

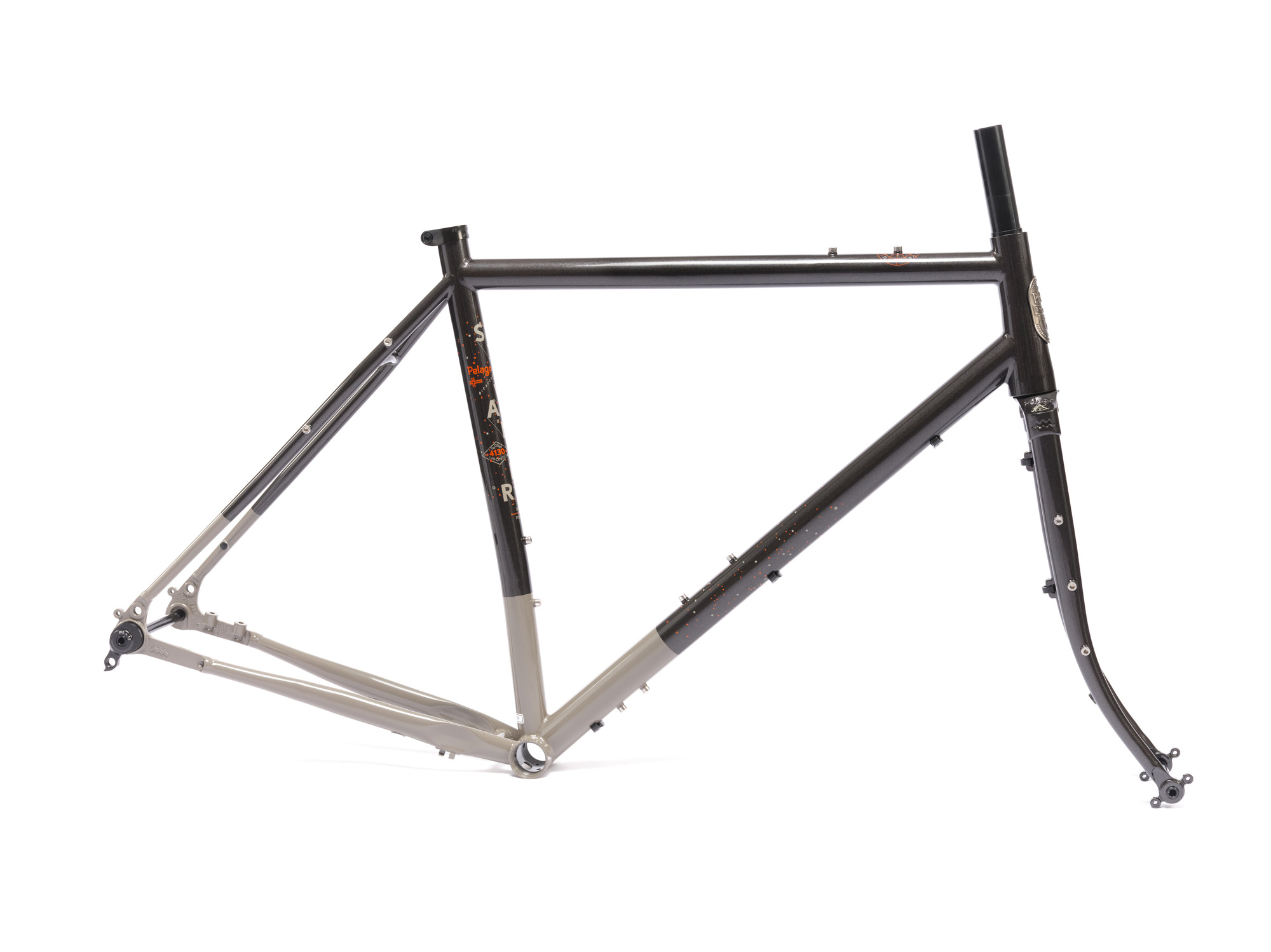

Pelago - Stavanger Frameset

Cane Creek 110 Balhoofd Technical Description Upper: EC34/28.6/H16/x Lower: EC34/30/H12/x Top Type EC - External Cup Top Head Tube Inside Dia. 33.95mm Stem Clamp Dia. 28.6mm Top Stack Height 16mm Top Bearing Type, Top-quality, sealed stainless steel bearings Bottom Type EC - External Cup Bottom Head Tube Inside Dia. 33.95mm Crown Race Seat Dia. 30mm Crown Race Type Aluminum, Dual-Seal Bottom Stack Height 12mm Bottom Bearing Type Top-quality, sealed stainless steel bearings Material : Alu 7075 Weight 97.46g

Slotting immediately in between the Forty series and Hellbender 70 headsets, Fifty series brings a new, modern aesthetic while maintaining a relatively affordable price. Additional machining on the top cover and cups along with refined, laser-etched graphics give the headset a sharper, more angular appearance that feels more appropriate for today’s bike.Specs: Cups & Covers: 6061 T-6 Aluminum, Internally relieved to reduce weight Bearings: ZN40 sealed cartridge bearings, zinc-coated for corrosion resistance Sealing: Steerer tube o-ring seal, low friction top cover lip seal, co-molded crown race lip seal Compression Ring: Carbon-friendly compression ring retained in top cover Crown Race: Steel forged, then machined for increased hardness & durability Spacers: Compatible with Cane Creek Interlok spacers + traditional spacers Stack Heights: External Cup (EC) — 15mm top, 11mm bottom ZeroStack (ZS) — 8mm top, 4mm bottom Integrated (IS) — 9mm top, 1mm bottom

Cane Creek Balhoofd 40 EC34/28.6 | EC34/30

Chris King NoThreadSet Headset 1 1/8Chris King NoThreadSet Headset 1 1/8 GripLock Upper: EC34/28.6 Lower: EC34/30

Hope Headset This conventional headset is designed to fit standard frames & 1 1/8" fork steerers Headset uses custom made, replaceable stainless steel bearings to resist corrosion The cups, taper ring & crown race (which is split for easy installation & removal) are all machined from 2014 T6 aluminium Sealing is achieved through an adjustable taper ring cover & integrated rubber seal Available in: Black & Orange Weight: 120g

The Phil Wood headset development was inspired by our great customers who have been encouraging us to release a headset. We would like to thank everyone that has worked with us over the years in the testing and development of our headset. We manufacture our headset out of US-produced stainless steel and 7075 aluminum. We engrave our script “Phil” into each stem cap and hand paint them just like our hubs. Each headset is machined in-house to the same high quality standards we apply to all of our products. Specifications: Headset Material: Stainless Steel, 7075 Aluminum Fork Race Material: Stainless Steel (Heat Treated) Top Stack Height: 15.5mm Bottom Stack Height: 13mm Bearing Availability: 45/45 (Standard) Headset Weight: 267gRider and Bike Weight Limit: 127 kgNote: Black & Silver can be ordered directly. Please contact us for all other colors and other headset sizes.

The Phil Wood headset development was inspired by our great customers who have been encouraging us to release a headset. We would like to thank everyone that has worked with us over the years in the testing and development of our headset. We manufacture our headset out of US-produced stainless steel and 7075 aluminum. We engrave our script “Phil” into each stem cap and hand paint them just like our hubs. Each headset is machined in-house to the same high quality standards we apply to all of our products. Specifications: Headset Material: Stainless Steel, 7075 Aluminum Fork Race Material: Stainless Steel (Heat Treated) Top Stack Height: 15.5mm Bottom Stack Height: 13mm Bearing Availability: 45/45 (Standard) Headset Weight: 267gRider and Bike Weight Limit: 127 kgNote: Black & Silver can be ordered directly. Please contact us for all other colors and other headset sizes.

The Disc Trucker shares the same great features as the standard Long Haul Trucker with the addition of disc brakes, to provide dependability on the daily commute or trans-continental excursion. It’s designed to go the distance, and the rack mounts enable it to haul a bunch of stuff. The frame features a low bottom bracket and long chainstays for comfort and stability. For 2020 the Disc Trucker has a revised & updated geometry. The new Disc Trucker has slightly shorter chainstays that add more agility when riding unloaded or with only a few things. We increased the stack and the headtube height. With a larger stack comes reduced standover clearance. So, we massaged the numbers to net just as much (if not more) standover than the legacy model, but you may notice that not all sizes have a truly horizontal top tube. The new dropouts are built around a 12mm thru-axle front and rear, and the bike is spaced at 100mm front and 142mm rear, with threaded axles. Specs: 100% 4130 chromoly steel frame and fork; main triangle double-butted, ED coated for increased life expectancy Upper bosses and dropout eyelets for racks front and rear, fender eyelets, pump peg, spare spoke carrier, and three sets of water bottle cage mounts The fork includes a routing hole for your dynamo hub. This isn’t earth-shattering, but proper placement cleans up the front end quite a bit. Chainring clearance max: 42/53t double, 38/52/56t triple 51mm IS disc mounts, designed to be used with 160mm rotors only Clears a 26 x 2.1" tire with or without fenders Rear brake mounting between seat stay and chain stay for zero interference with fenders or racks The new dropouts are built around a 12mm thru-axle front and rear The bike is spaced at 100mm front and 142mm rear, with threaded axles. Still compatible with triple cranks for when you need all the gear range you can get! Rohloff internally geared hub compatible using the upper rack mount on the NDS dropout. The boss is sized to mimic an M6 bolt head and index perfectly with an OEM2 axle plate. A chain tensioner will be necessary. More info can be found at Surly Bikes

A class-leading touring bike, the newly redesigned Disc Trucker provides versatility and dependability on the daily commute or trans-continental excursion. Fork blade three-pack mounts enable you to attach and haul even more stuff, and the frame features a low bottom bracket and long chainstays for comfort and stability while loaded down. With increased stack height and improved stand-over clearance, plus ample space for larger tires and fenders, it’s designed to go the distance. 100% Chromoly steel frame and fork; double-butted main triangle and E.D. coating for increased frame life Braze-ons for fenders, racks, and almost anything else you might want to stick on your bike, plus spare spoke holders for when the road gets rough Fork blade three-pack mounts for even more mounting options, plus routing for Dynamo hubs Redesigned front and rear dropouts to accommodate captured 12mm thru-axles and flat-mount disc brakes Clearance for 700c x 47mm with or without fenders

At White Industries, they always strive to make the highest quality products and our Headsets are no exception. This product has been designed with the user in mind in a few ways. Easy to service, clean, and adjust your headset. For durability, the headsets are made with stainless steel bearings and aluminium cups to give you corrosion resistance and strength.
