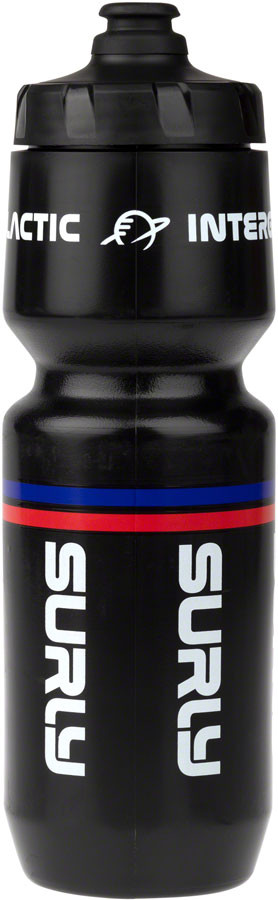

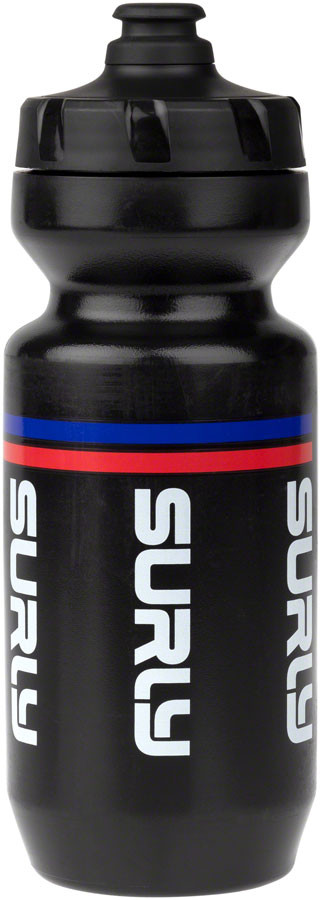

The Intergalactic Surly Bicycle Company Bottle offers premium real estate for your refreshment of choice. Shielded from unwanted odors, flavors, mold, and stains, your water won’t taste like whatever else you put in there last time.
Volume: 500 cc

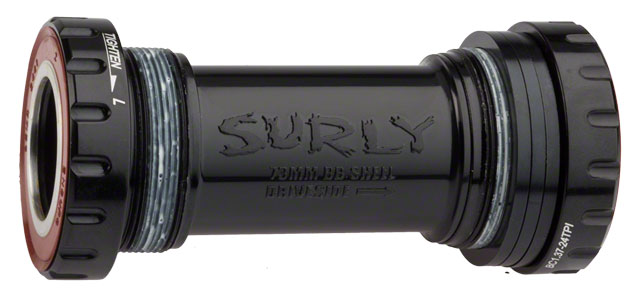

Surly OD Crank Enduro Bottom BracketSurly OD Bottom Brackets
PF cups are 41mm in diameter
Screw Cups are BSA 1.37 x 24 TPI
Bearing I.D. is 24mm
OD bottom bracket comes with telescoping center sleeve for added durability
High quality double labyrinth sealed stainless Enduro bearings with corrosion resistant coating
3 additional 1mm spacers are provided to help with chain line and crank arm clearance

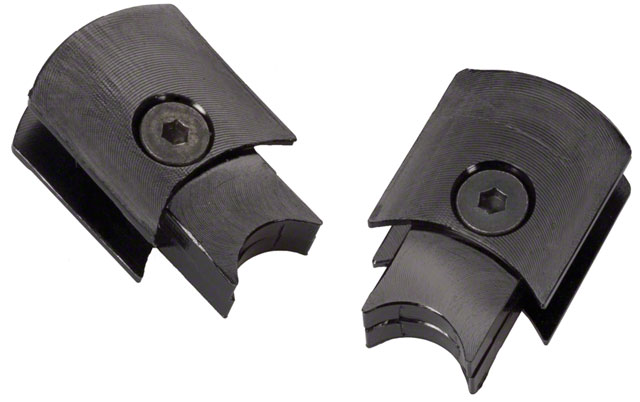

Problem Solvers Direct Mount Adaptor Surly Moonlander
Works for Shimano and SRAM High Direct Mount front derailleurs
34.9mm Clamp with shims for 31.8 & 28.6
55mm offset for Surly MoonlanderProblem Solvers Direct Mount Adaptor For Surly Moonlander fits 34.9 w/shims

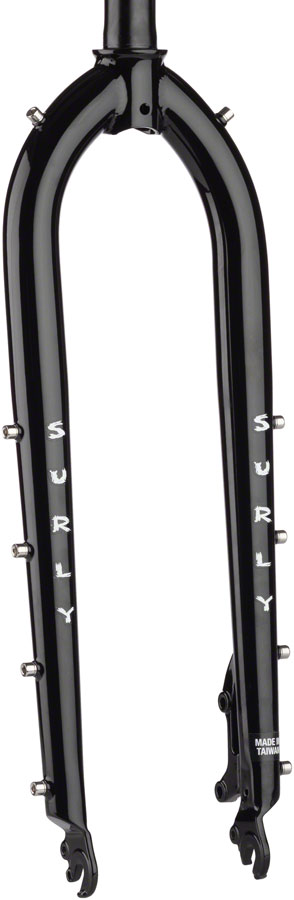

The ECR fork features accommodations for a rack and fenders, a set of Three-Pack cage mounts on each leg, disc brake mounts and brake line guides. Constructed using the same 4130 CroMoly steel as Surly’s frames and forks, with an 1-1/8” steerer.
Butted and tapered blades
Barrel bosses at the dropouts and crown
Mid-blade thru-blade eyelets
Three-Pack cage bosses on each fork leg
QR Dropouts
Fits tires up to 27.5 x 3” wide
The Intergalactic Surly Bicycle Company Bottle offers premium real estate for your refreshment of choice. Shielded from unwanted odors, flavors, mold, and stains, your water won’t taste like whatever else you put in there last time.
Volume: 750 cc

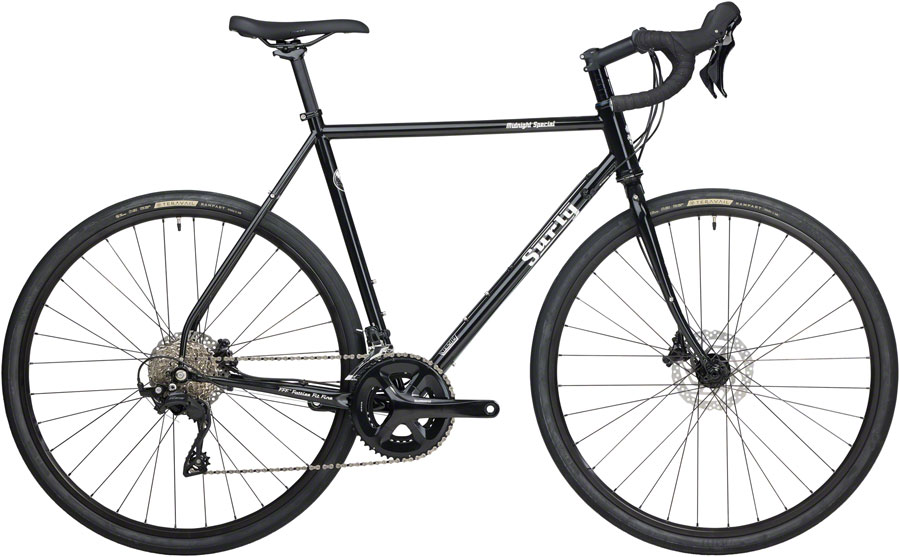

The Midnight Special is a road plus bike designed to provide comfort and speed on those all-day rides that extend well beyond fresh pavement. It excels on pot-holed, deteriorating pavement and the occasional long stretch of gravel. The Midnight Special’s 650b road plus tires eat up road chatter and absorb all the bumps in the road for a much more comfortable ride.Frame:
100% Surly 4130 CroMoly frame, main triangle is double-butted; 1-1/8" threadless CroMoly fork
Rack, fender, and three sets of water bottle mounts
Flat-Mount disc brakes
44mm head tube
Tire Clearance: 27.5x2.35" (w/o fenders), 700c x 42mm (w/o fenders), 650b x 50 (w/ fenders), 700c x 38mm (w/ fenders)
Drivetrain
Crankset: SRAM Rival 1, 40t
Bottom Bracket: SRAM GXP
Front Derailleur: n/a
Rear Derailleur: SRAM Rival 1
Cassette / Cog: SunRace 11-42t
Chain: KMC X11, 11 speed
Components
Handlebar: Salsa Cowbell 31.8
Stem: ProMax, 31.8, 4-bolt
Headset: Cane Creek 40, 1-1/8"
Shifters: SRAM Rival 1
Brake Levers: SRAM Rival 1
Brakes: TRP Spyre, 160mm rotors
Saddle: WTB Volt 142
Seatclamp: 30.0mm Surly Stainless
Seatpost: Promax
Wheels
Front Hub: Novatec 12x100mm
Rear Hub: Novatec 12x142mm
Front axle: Thru Axle
Rear axle : Thru Axle
Rims: Alex: Adventurer 2, Tubeless ready, 32H
Tires: WTB Horizon 650bx47mm, TCS Folding, tan side wall
More info @ Surly Bikes
The Disc Trucker shares the same great features as the standard Long Haul Trucker with the addition of disc brakes, to provide dependability on the daily commute or trans-continental excursion. It’s designed to go the distance, and the rack mounts enable it to haul a bunch of stuff. The frame features a low bottom bracket and long chainstays for comfort and stability.
For 2020 the Disc Trucker has a revised & updated geometry. The new Disc Trucker has slightly shorter chainstays that add more agility when riding unloaded or with only a few things. We increased the stack and the headtube height. With a larger stack comes reduced standover clearance. So, we massaged the numbers to net just as much (if not more) standover than the legacy model, but you may notice that not all sizes have a truly horizontal top tube.
The new dropouts are built around a 12mm thru-axle front and rear, and the bike is spaced at 100mm front and 142mm rear, with threaded axles. Specs:
100% 4130 chromoly steel frame and fork; main triangle double-butted, ED coated for increased life expectancy
Upper bosses and dropout eyelets for racks front and rear, fender eyelets, pump peg, spare spoke carrier, and three sets of water bottle cage mounts
The fork includes a routing hole for your dynamo hub. This isn’t earth-shattering, but proper placement cleans up the front end quite a bit.
Chainring clearance max: 42/53t double, 38/52/56t triple
51mm IS disc mounts, designed to be used with 160mm rotors only
Clears a 26 x 2.1" tire with or without fenders
Rear brake mounting between seat stay and chain stay for zero interference with fenders or racks
The new dropouts are built around a 12mm thru-axle front and rear
The bike is spaced at 100mm front and 142mm rear, with threaded axles.
Still compatible with triple cranks for when you need all the gear range you can get!
Rohloff internally geared hub compatible using the upper rack mount on the NDS dropout. The boss is sized to mimic an M6 bolt head and index perfectly with an OEM2 axle plate. A chain tensioner will be necessary.
More info can be found at Surly Bikes
The Terminal Bar blends cruiser-style comfort with off-road touring performance. Able to run with a 40mm drop or rise, its swept-back design makes it great for long rides on rough, technical terrain.Specs:
22.2mm diameter grip area; good to go for MTB shifters, brake levers, and grips
34 degree backsweep with a 40mm + / - rise
Back Sweep (deg): 34 deg
Bar Clamp Diameter (mm): 22.2 mm
Color: Black
Defined Color: Black
Weight: 400 g
Lever Compatability: Mountain 22.2
Material: Aluminum
Rise: 40 mm
Width: 735 mm
A class-leading touring bike, the newly redesigned Disc Trucker provides versatility and dependability on the daily commute or trans-continental excursion. Fork blade three-pack mounts enable you to attach and haul even more stuff, and the frame features a low bottom bracket and long chainstays for comfort and stability while loaded down. With increased stack height and improved stand-over clearance, plus ample space for larger tires and fenders, it’s designed to go the distance.Specs:
100% 4130 chromoly steel frame and fork; main triangle double-butted, ED coated for increased life expectancy
Upper bosses and dropout eyelets for racks front and rear, fender eyelets, pump peg, spare spoke carrier, and three sets of water bottle cage mounts
Chainring clearance max: 42/53t double, 38/52/56t triple
51mm IS disc mounts, designed to be used with 160mm rotors only
Redesigned front and rear dropouts to accommodate captured 12mm thru-axles and flat-mount disc brakes
Clears 700c x 42mm tire with fenders, 45mm without
The 700c Disc Trucker is available in a 64cm
Frameset:
Frame: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Drivetrain:
Crankset: Shimano Alivio 48x36x26t
Bottom Bracket: Shimano SM-BB52
Front Derailleur: Shimano Sora R3030
Rear Derailleur: Shimano Alivio M4000 SGS
Cassette / Cog: Shimano Alivio, 11-34t, 9 speed
Chain: KMC X10
Components:
Stem: Kalloy AS-009, 26mm
Headset: Cane Creek 40, 1-1/8"
Shifters: Shimano Sora 3x9
Brake Levers: Shimano Sora
Brakes and Rotors: TRP Spyre C, 160mm front and rear
Saddle: WTB Volt Sport
Seatclamp: Surly Stainless, 30.0mm
Seatpost: ProMax 27.2, 350L, non-offset (42-50), offset (52-64)
Wheels:
Front Hub: Novatec 12x100, 6 bolt, 36H
Rear Hub: Novatec 12x142, 6 bolt, 36H
Rims: Alex Adventurer 2
Tires: Surly ExtraTerrestrail 700x41
The Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack. Ogre brings several sensible features to the 29er platform, including horizontal slotted dropouts with Gnot-Boost spacing, a tweaked non-suspension corrected geometry, and a beefy tire clearance.
100% Surly Chromoly steel, double-butted main triangle
TIG welded, Horizontal slotted with derailleur hanger, Gnot-Boost spacing allows the use of 135mm QR hub, 142 x 12mm thru-axle or 148 x 12mm Boost hubs. Features Rohloff torque arm slot and threaded eyelets for fenders, racks and Surly trailer mounts
Full-length Surly Trip Guide housing line guides for derailleurs and brakes; two sets of bottle cage mounts; upper seatstay threaded barrels, mid- and low-blade fully threaded through-blade fork eyelets; threaded holes for racks, fenders and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot Disc brakes only. Disc mounts are 51mm IS. Note: rear disc brake is limited to 160mm maximum rotor diameter and requires the use of Surly caliper adaptor (included with frames and bikes)
Frame is E.D. coated for increased life expectancy
Tire clearance for 29 x 2.5" or 27.5 x 3"
Specs:
Crankset: SRAM NX, 32T
Rear Derailleur: Microshift Advent X
Cassette / Cog: Microshift Advent X, 11-48t, 10-spd
Rear Shifter: Microshift Advent X
Brake: Tektro HD-M275/HD-M276, Tektro 160mm Rotor
Tires: Surly ExtraTerrestrial 29 x 2.5" 60tpi, Tubeless Ready (Slate wall)
As a highly versatile touring bike, the Bridge Club hits the sweet spot that separates on- and off-road excursions. The simplistic design makes it fully adept to handle a full rack and pannier setup, frame bags, or any combination of the two. It doesn’t feel sluggish on paved shortcuts, but can also hold its own on dirt detours. If you’re feeling a little zesty on your next road tour, you won’t be ill-prepared for reroutes through the woods. The Bridge Club is designed to handle it all.
100% Surly 4130 CroMoly frame, main triangle is double-butted; 1-1/8" threadless CroMoly fork
Rack, fender, and four sets of Three-Pack mounts
Disc brake-specific, single-position vertical rear dropout makes it less intimidating than other bikes in the category
Durable 700c wheel build, including Surly Extra Terrestrial 700 x 41mm tires
Swept-back comfort and off-road capable Surly Terminal Handlebar
Clearance for 700 x 47mm (with or without fenders) or 27.5 x 2.8" tires (27.5 x 2.6" with fenders)
Designed to introduce unfamiliar riders to Surly’s pavement and gravel line, Preamble highlights Surly’s most essential features: Durable custom steel tubing, a renowned ride feel, and just the right mounts for running racks, fenders, and bottle cages. Available in flat-bar and drop-bar configurations, it’s disc-brake specific and shares a single-position vertical dropout with Surly Bridge Club. For new weekend riders and veteran commuters, Preamble makes it easier than ever to get out of the car and on top of tough and comfortable Chromoly steel.
Preamble Specs:
Frame: Surly Preamble, 100% Chromoly steel tubing, E.D. coated
Fork: Surly Preamble, 100% Chromoly steel fork, Disc Only
Color: Skyrim Blue
Seatpost Clamp: Surly Stainless 30.0
Rear Derailleur: microSHIFT RD-M5185M
Cassette / Cog: microSHIFT 12-42t, 8-speed
Chain: KMC Z8.3
Crankset: Samox, 3-piece, 40t
Shifter: microSHIFT Acolyte Xpress
Brakes Levers: Avid FR-5
Brakes: Avid BB5 Mechanical
Rotors: SRAM 160mm, front and rear
Headset: VP 1-1/8" Threadless
Stem: Kalloy 31.8
Handlebar:Kalloy, 35mm rise, 9-degree backsweep
Grips / Bar Tape: Black Rubber
Seatpost: Kalloy 27.2 x 300mm
Saddle: Selle Italia X Base
Front Hub: Novatec, 6-bolt disc, 32h, QR
Rear Hub: Novatec, 6-bolt disc, 32h, QR
Rims: 21mm, 32h
Tires: Kenda Kwik Tendril 700c x 35mm (MD/LG/XL sizes) & Kenda Standard 650b x 1.35 (XS/SM sizes)
XS & SM : 650b Wheels & tires
MD/LG/XL: 700c Wheels & Tires
The Disc Trucker shares the same great features as the standard Long Haul Trucker with the addition of disc brakes, to provide dependability on the daily commute or trans-continental excursion. It’s designed to go the distance, and the rack mounts enable it to haul a bunch of stuff. The frame features a low bottom bracket and long chainstays for comfort and stability.
For 2020 the Disc Trucker has a revised & updated geometry. The new Disc Trucker has slightly shorter chainstays that add more agility when riding unloaded or with only a few things. We increased the stack and the headtube height. With a larger stack comes reduced standover clearance. So, we massaged the numbers to net just as much (if not more) standover than the legacy model, but you may notice that not all sizes have a truly horizontal top tube.
The new dropouts are built around a 12mm thru-axle front and rear, and the bike is spaced at 100mm front and 142mm rear, with threaded axles. Specs:
100% 4130 chromoly steel frame and fork; main triangle double-butted, ED coated for increased life expectancy
Upper bosses and dropout eyelets for racks front and rear, fender eyelets, pump peg, spare spoke carrier, and three sets of water bottle cage mounts
The fork includes a routing hole for your dynamo hub. This isn’t earth-shattering, but proper placement cleans up the front end quite a bit.
Chainring clearance max: 42/53t double, 38/52/56t triple
51mm IS disc mounts, designed to be used with 160mm rotors only
Clears a 26 x 2.1" tire with or without fenders
Rear brake mounting between seat stay and chain stay for zero interference with fenders or racks
The new dropouts are built around a 12mm thru-axle front and rear
The bike is spaced at 100mm front and 142mm rear, with threaded axles.
Still compatible with triple cranks for when you need all the gear range you can get!
Rohloff internally geared hub compatible using the upper rack mount on the NDS dropout. The boss is sized to mimic an M6 bolt head and index perfectly with an OEM2 axle plate. A chain tensioner will be necessary.
More info can be found at Surly Bikes
Surly Porteur House
Designed to fit the Surly 24-Pack Rack, Surly’s updated Porteur House Bag features a versatile strap system that gets along with a variety of Porteur-style racks. Simple to install and remove, it’s been tweaked to be even better for commuting and light weekend camping. With a structured body to stabilize your cargo, an integrated nylon liner, a handy roll top for accommodating bulky items, and more pockets than your old cargo pants, the Porteur House Bag makes unwieldy loads decidedly wieldier.Specs:
Includes two One-Wrap straps and one accessory bungee for securing loads of different shapes and sizes
One large main compartment, two front pockets, and two additional pockets on both sides of bag
30-lb. bag capacity. Consult your rack’s weight limitations
Dimensions when Rolled: 370 x 280 x 240mm
Dimensions when Unrolled: 370 x 280 x 440mm
Main body 1680D nylon, Liner 400D nylon. Bag fabric and hardware are bluesign Approved, which means the materials are sustainably produced to have the lowest possible impact on people and the environment
18L volume
Surly Karate Monkey Frameset
The Karate Monkey features updated, progressive trail geometry, a new tubeset and Surly’s Gnot-Boost rear dropout system. Available in a variety of colors, with multiple drivetrain and wheel size configurations.Specs:
100% Surly 4130 chromoly steel frame and fork; double-butted main triangle and 44mm headtube
New tubeset uses the same trumpet tubes found on Instigator 2.0 frame
Front Axle: 15mm Thru x 110mm
Rear Axle: 12mm Thru x 148mm
Rear dropouts with 145mm Gnot-Boost spacing. Works with 142, 148 12mm thru, as well as 135mm w/ 10/12 washer
Internal dropper seatpost routing
30.9mm seat tube ID
Clearance for 29 x 2.55 or 27.5 x 3” tires
Surly Karate Monkey Frameset
The Karate Monkey features updated, progressive trail geometry, a new tubeset and Surly’s Gnot-Boost rear dropout system. Available in a variety of colors, with multiple drivetrain and wheel size configurations.Specs:
100% Surly 4130 chromoly steel frame and fork; double-butted main triangle and 44mm headtube
New tubeset uses the same trumpet tubes found on Instigator 2.0 frame
Front Axle: 15mm Thru x 110mm
Rear Axle: 12mm Thru x 148mm
Rear dropouts with 145mm Gnot-Boost spacing. Works with 142, 148 12mm thru, as well as 135mm w/ 10/12 washer
Internal dropper seatpost routing
30.9mm seat tube ID
Clearance for 29 x 2.55 or 27.5 x 3” tires
The Moloko Adjunct Personal Effects Receptacle is made from urethane-coated nylon canvas and designed to fit in the center of the Surly Moloko Bar. It has space for essentials and can easily be accessed while riding.
Constructed from urethane-coated nylon canvas to provide water-resistant protection
Elastic cord on top snuggly secures extraneous loose items like wrappers or gloves
Integrated light port allows a battery cord to pass through
Dimensions: 254 x 90 x 90mm
