Headsets

Though they are fairly simple components, bicycle headsets can be difficult to understand. There are a vast array of different configurations and sizes, and it can feel quite overwhelming when looking at all the possibilities. In 2010, Cane Creek introduced the Standardized Headset Identification System (SHIS) - an effort to establish a unified classification system by which we describe all modern headsets. The codified name is a series of letters and numbers that describe its relevant dimensions, as well as how it fits into the bike frame.

Cane Creek AngleSet - ZS44/28.6/H13 | EC56/40&30/H15

€ 279,99

Beschikbaar in 6 dagen, levertijd 2-5 days

Productnummer: BAA0504K

Fabrikant: Cane Creek

Fabrikant nummer: BAA0504K

Productinformatie "Cane Creek AngleSet - ZS44/28.6/H13 | EC56/40&30/H15"

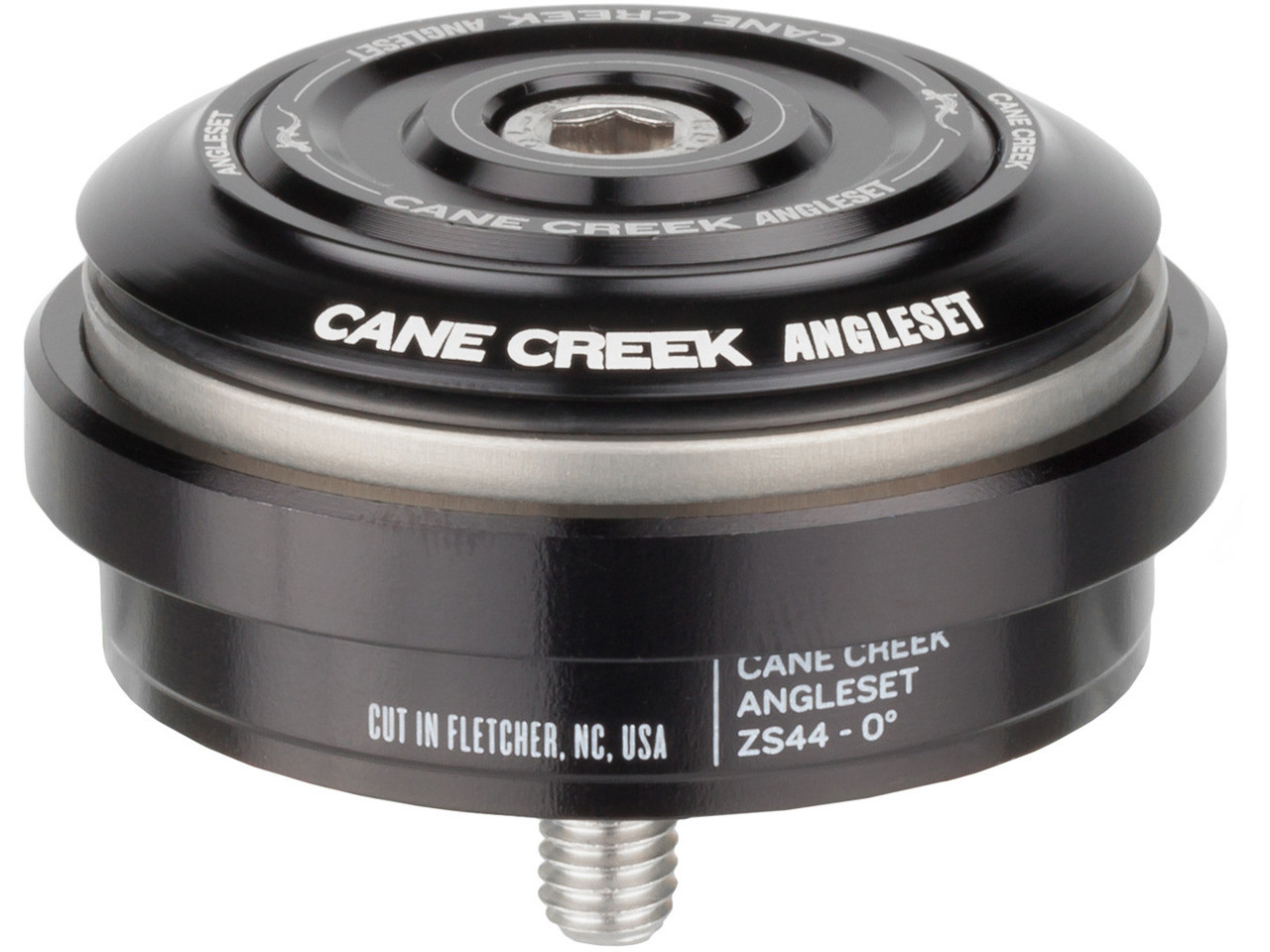

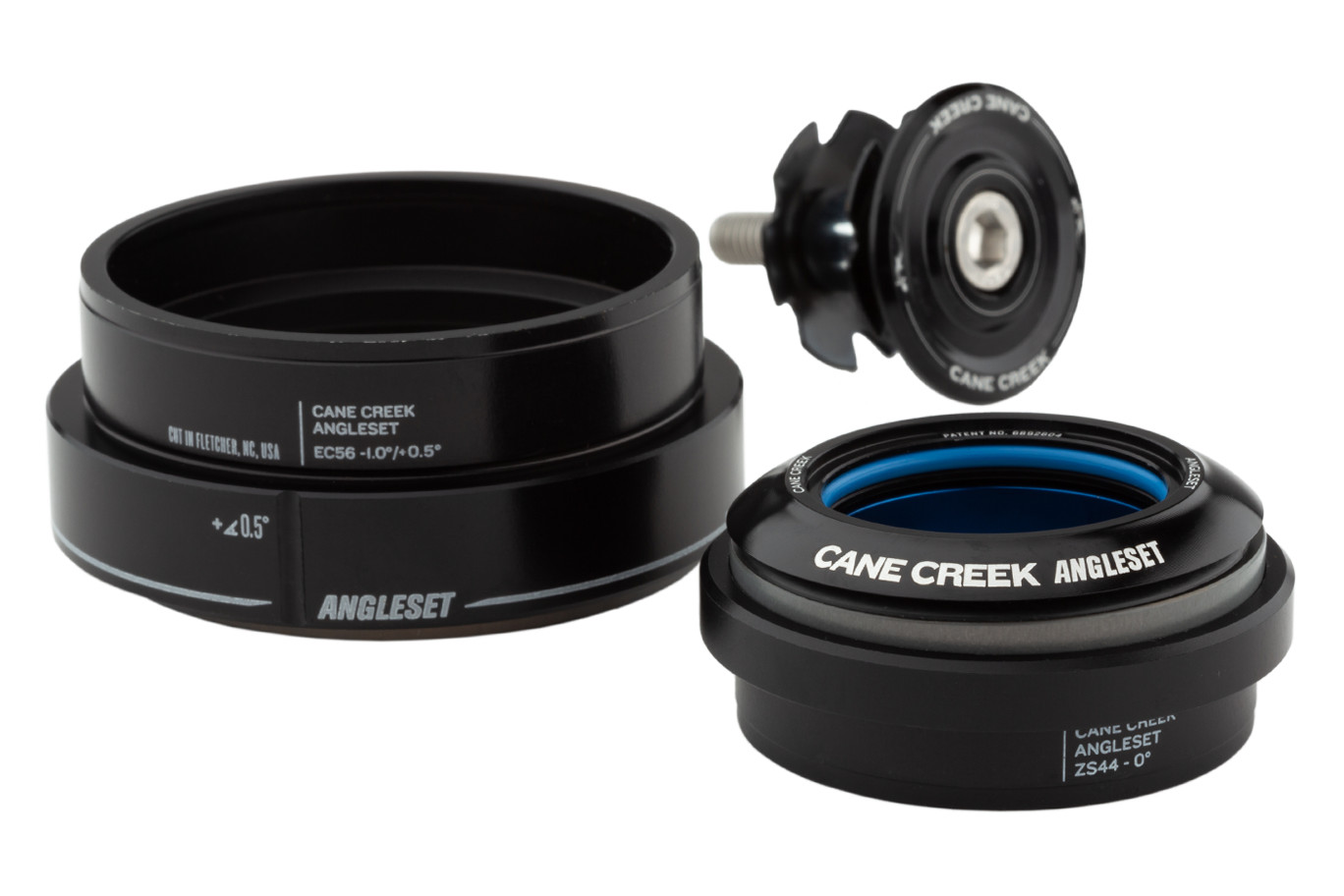

Cane Creek AngleSet

The award-winning AngleSet threadless headset makes it possible to change your game. You can transform the head angle of your mountain bike with ease, with up to six offset angle adjustments. Steeper or slacker adjustments from 0.5 to 1.5 degrees, make dialing in the perfect geometry to attack the trail a breeze. The design of AngleSet is head-tube length independent and fits most popular head-tube standards for both tapered and straight forks.

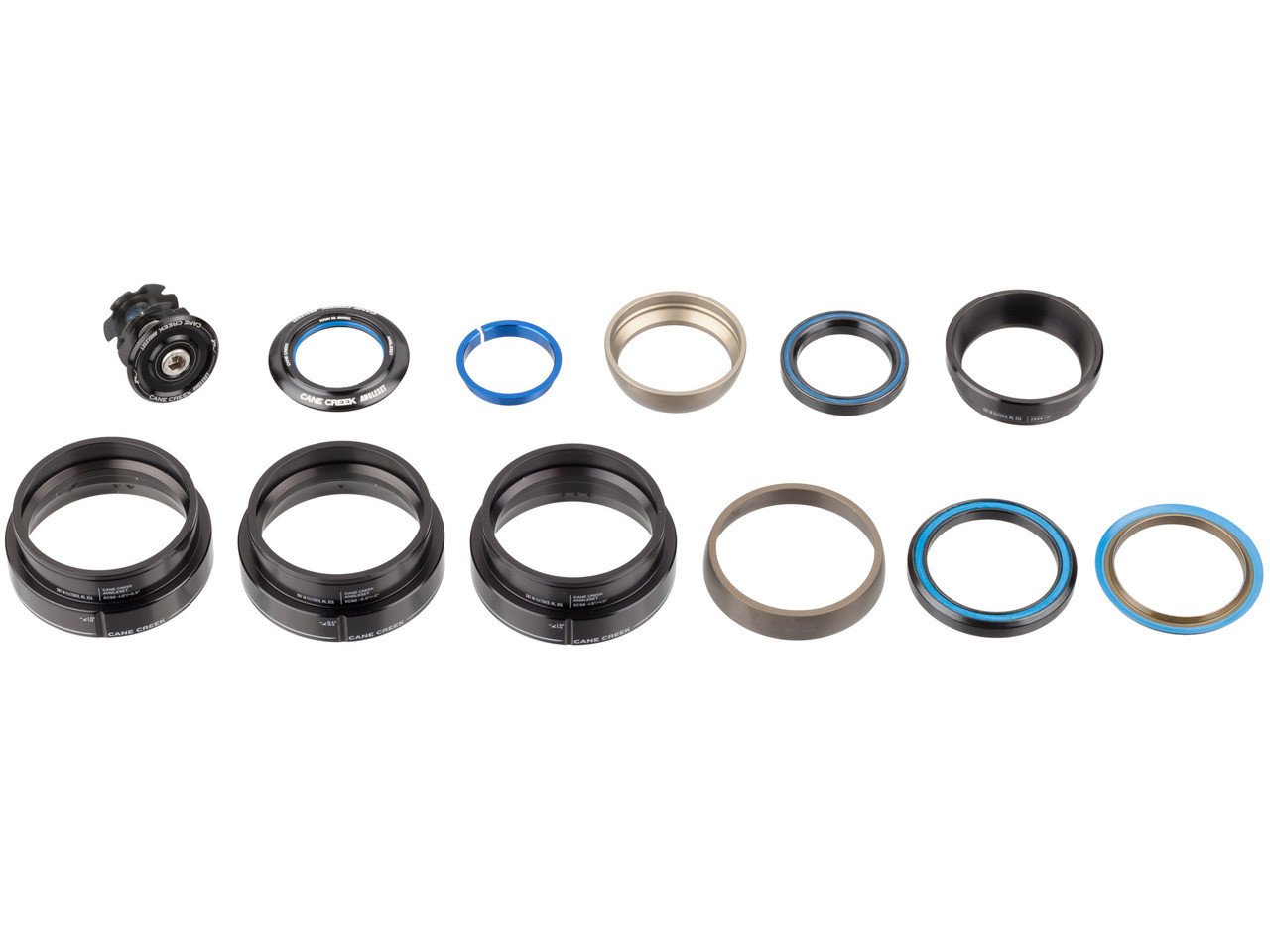

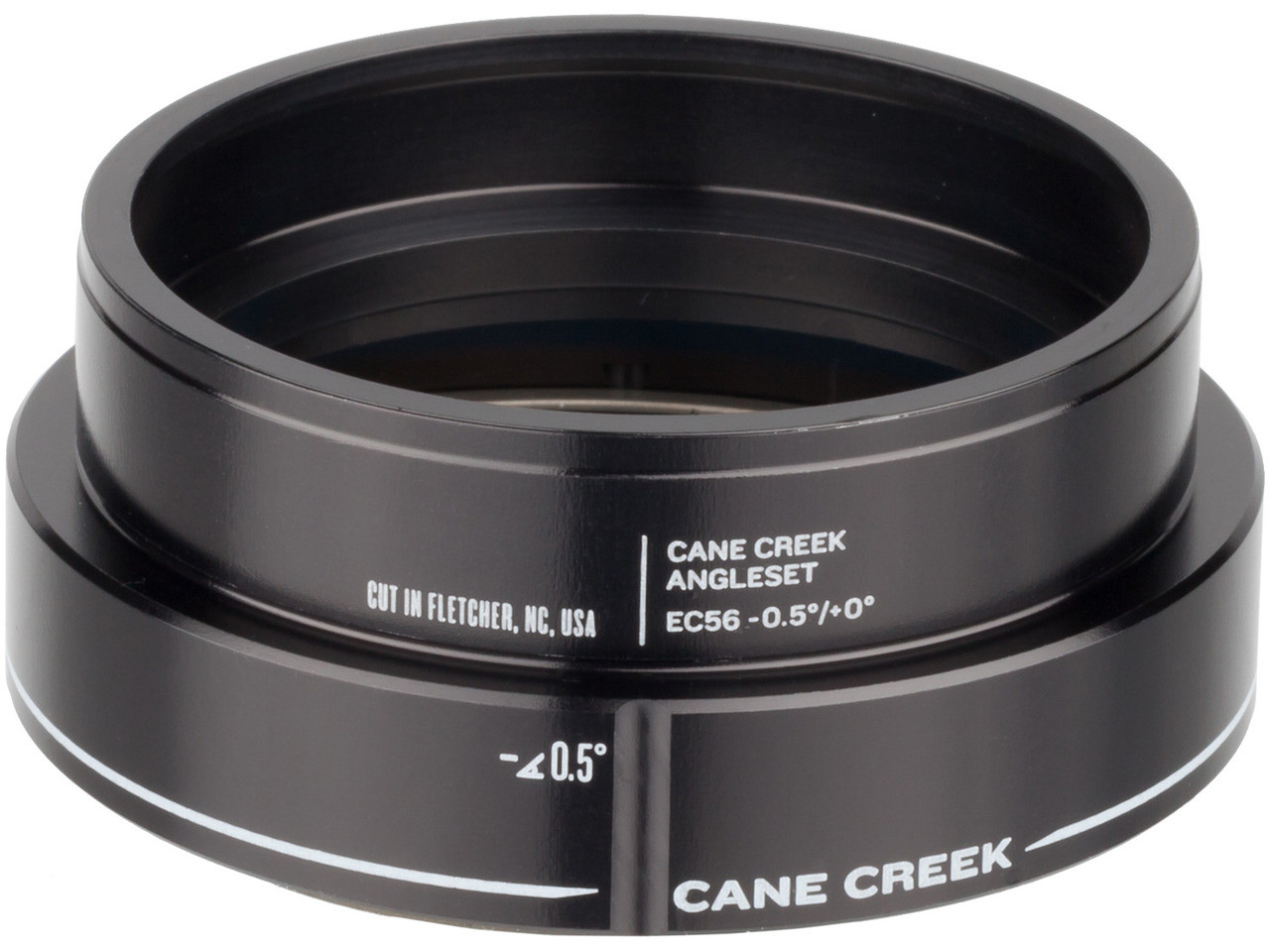

The varying headtube angles are achieved through the offset headset cups and gimbal system. Each offset cup can create a steeper or slacker angle by rotating it 180 degrees. 0.5, 1.0, and 1.5 degree offset options.

Specs: ZS44/28.6 - EC56/40

Design: zero stack (ZS), external cup (EC)
Steerer Tube: 28.6 mm
Crown Steerer Tube: 40 mm
Upper Head Tube (Frame Inner Diameter): 44 mm
Lower Head Tube (Frame Inner Diameter): 56 mm
Bearing Angle: 45°
Upper Stack Height: 13 mm
Lower Stack Height: 14 mm
Adjustment Angle: +/- 0.5°, +/- 1°, +/- 1.5°
