Tubleweed Sunliner Frameset

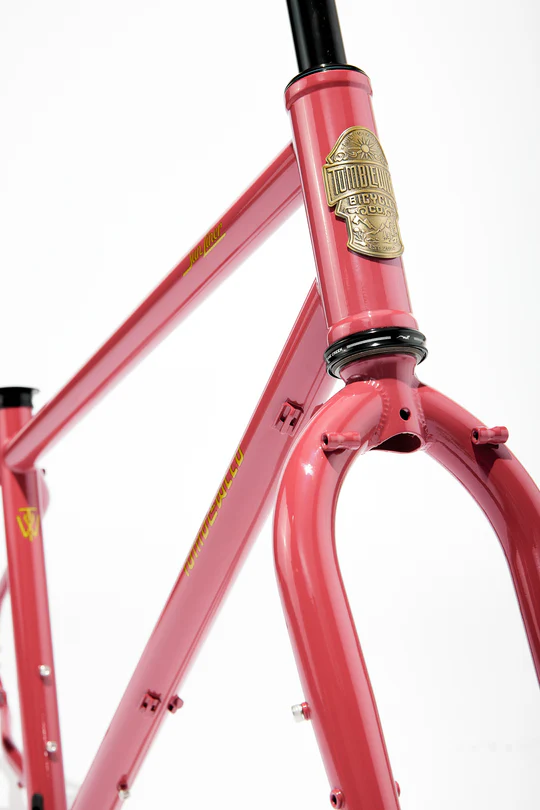

The Sunliner is Tumbleweeds newest model, it's a fully rigid mountain touring bike built with the same ultra high end steel tubeset and construction as our award winning Stargazer, but with the geometry from the Prospector that has been optimized for flat/swept back bars like our Persuader. The Sunliner has the same non-suspension corrected fork design as the Stargazer, which creates a huge front triangle and allows for maximum framebag space as well as easy fender mounting. The Sunliner can fit up to a 29x3.0" tire and has all of the mounting points for racks, fenders and gear that you would expect for a bike designed from the ground up for off road touring.
This bike came about due to requests from two different groups of customers, those who wanted a flat bar expedition bike like the Prospector but built around thru axles and derailleurs instead of the 14 speed Rohloff internally geared hub, and customers who love the Stargazer but prefer riding with flat bars over drop bars. We've been riding prototypes of the Sunliner for about a year now in all sorts of configurations, drivetrains, bag/rack setups, loaded and unloaded and it's a very easy bike to recommend to anyone interested in a versatile and capable all around bikepacking rig.
We at JustPedal assemble each bike one at a time and hand build the wheels in house to the customer's specifications. Our Complete Bike Standard Spec is the starting point that we use for each build, and can be changed to suit your needs. The price for a Standard Spec build is about 3800 Euro. Bike delivery times will vary based on availablility of desired components and the number of builds in our queue, the current lead time is approximately 4 weeks for shipping a complete standard build once the parts list is finalized.
| Sizes | Small - Medium - Large - Extra Large |
| Tubing | Heat Treated, size specific Cromoly tubing. Oversized triple and quad butted main triangle with integrated gussets |

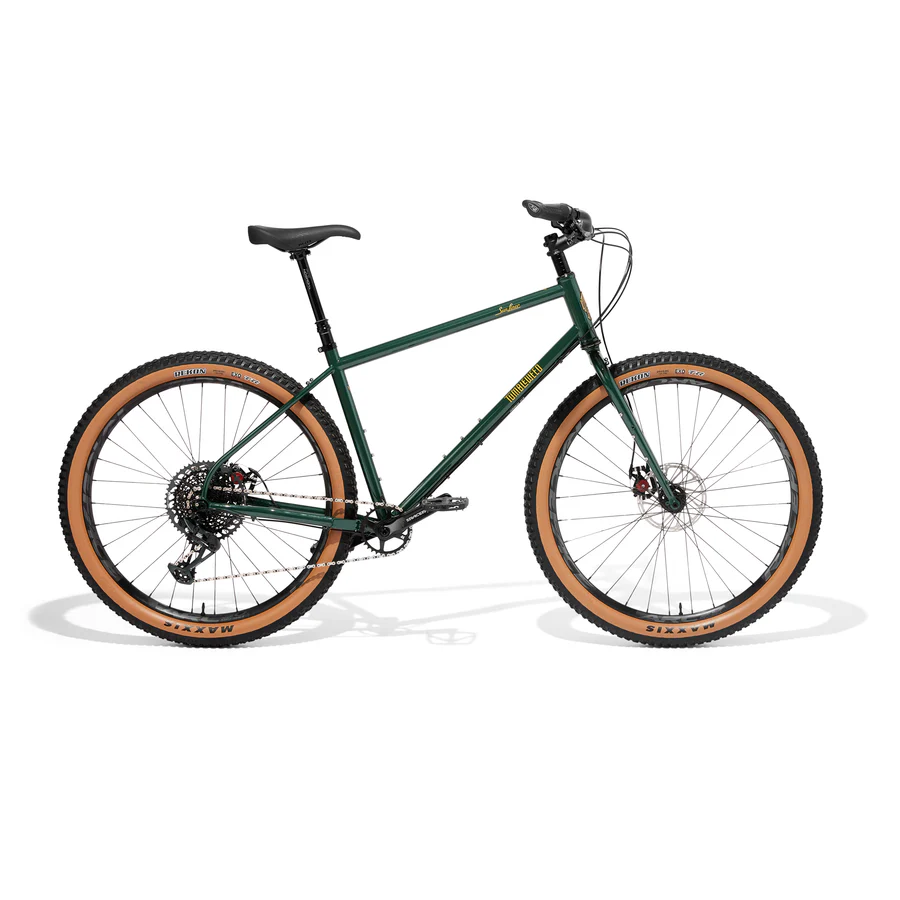

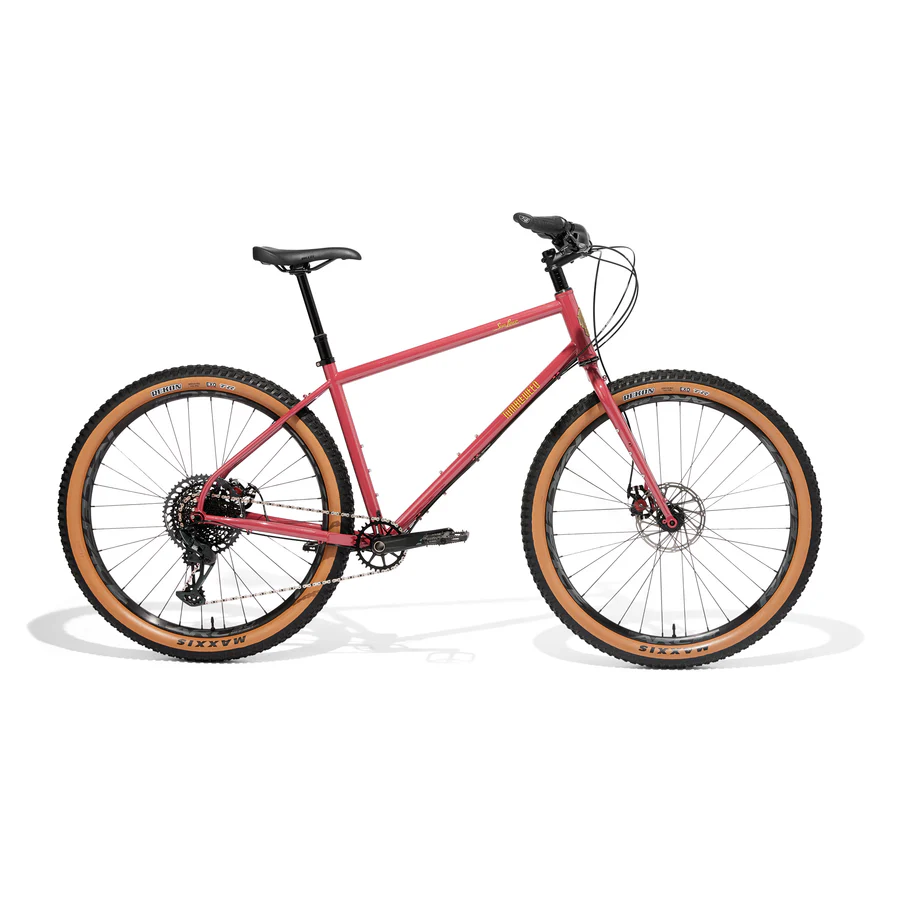

| Colors | Forest Green or Rhubarb (dark pink). Both with gold Tumbleweed graphics |
| Tire Clearance | Optimized for 29x2.6”, clearance for up to 29 x 3 (Tested with WTB Ranger tire on 40mm internal rim width) |
| Head Tube Diameter | 44mm I.D. for ZS44 upper, EC44 lower cups |
| Bottom Bracket | 73mm BSA threaded |
| Spacing | Boost 148mm x 12mm thru axle (included) |
| Seat Post Diameter | 31.6 |
| Seat Collar Diameter | 35mm (included) |
| Dropper routing | External routing on down tube with internal routed seat tube |
| Driveline | 1x drivetrain specific. Not designed to accommodate a front derailleur |
| Chainring Clearance | 38 tooth max |
| Brake Compatibility | 180mm or 160mm IS mount, front and rear with external cable routing |
| H20 mounts | One set on seat tube, one 3 pack mount on top of downtube, one 3 pack mount under down tube (Small has 2 mounts on top of downtube) |
| Rack and Fender mounts |
| Tire Clearance | 29 x 3 (Tested with WTB Ranger tire on 40mm internal rim width) |
| Spacing | Boost mountain - 110x15mm thru axle (included) |
| 3 pack mounts angled rearward | |
| Low rider rack mounts | |
| Upper fork crown rack mounting points | |
| Center hole on fork crown | |
| Generator wiring port on lower right leg | |
| Rack & Fender mounts at dropouts | |
| 440mm Axle to Crown with 55mm offset |
| Sunliner Geometry | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Effective Top Tube Length | 600mm | 620mm | 640mm | 660mm |
| Seat Tube Length | 380mm | 430mm | 480mm | 545mm |
| Head Tube Angle | 69° | 69° | 69° | 69° |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
| Bottom Bracket Drop | 65mm | 65mm | 65mm | 65mm |
| Chainstay Length | 456mm | 456mm | 456mm | 456mm |
| Head Tube Length | 130mm | 150mm | 175mm | 210mm |
| Fork Length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1131mm | 1153mm | 1175mm | 1197mm |
| Fork Offset | 55mm | 55mm | 55mm | 55mm |
| Stack | 590mm | 608mm | 632mm | 664mm |
| Reach | 420mm | 434mm | 447mm | 457mm |
| Standover Height at center of top tube with 29x2.6" tire | 765mm | 795mm | 835mm | 875mm |
| Recommended Rider Height | 5'2"-5'7" | 5'6"-5'10" | 5'10"-6'2" | 6'1"-6'7" |
| Recommended Rider Saddle Height | 63-69cm | 68-73cm | 74-81cm | 80-88cm |
