Jones Steel Plus LWB Diamond frameset Black


Available in 21 days, delivery time 2-5 days

Frame Size
Product number: FS-LWfeDTMbk
Manufacturer: Jones Bikes
Manufacturernumber: FS-LWfeDTMbk
Directly available: 0
Product information "Jones Steel Plus LWB Diamond frameset Black"

The Jones Plus LWB has proven itself as one of the most versatile bikes around, winning awards for its abilities as a bikepacking bike, as well as praise for just about all other types of riding, and it's little wonder: the long wheelbase geometry puts you in a position that's comfortable and relaxed on the one hand, but very efficienton the other!

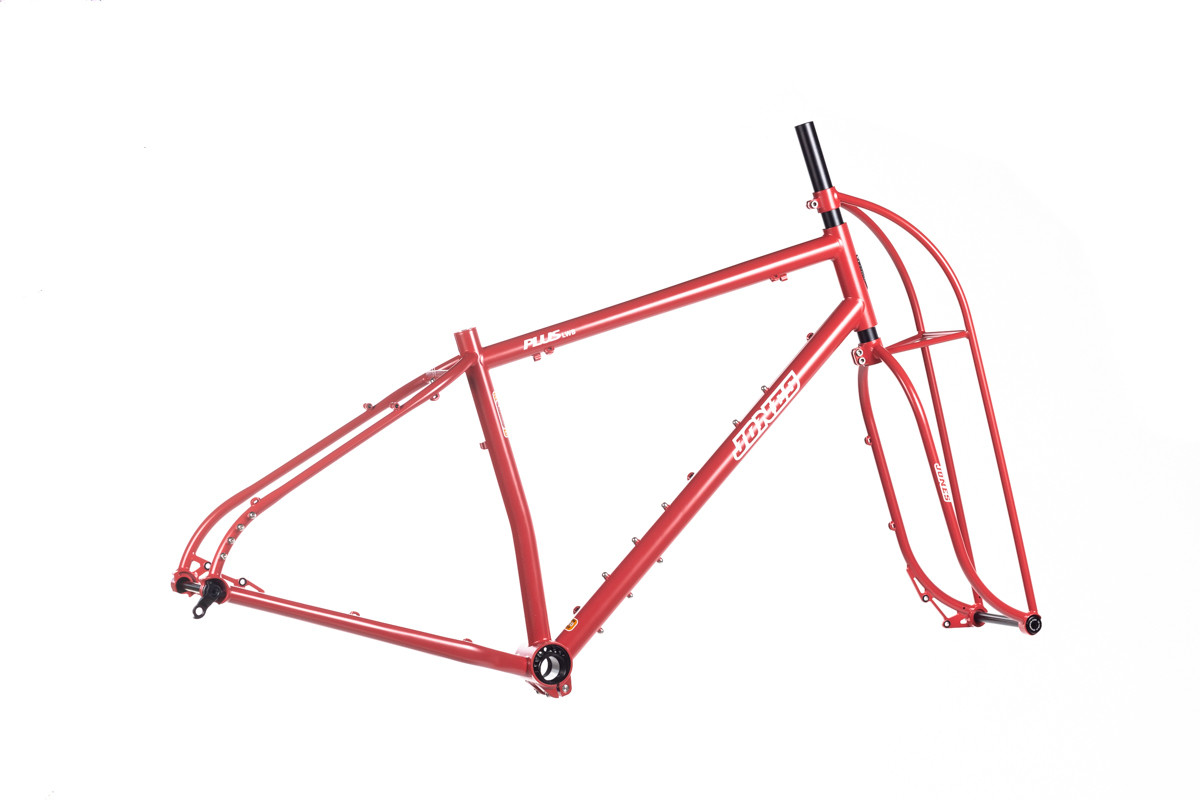

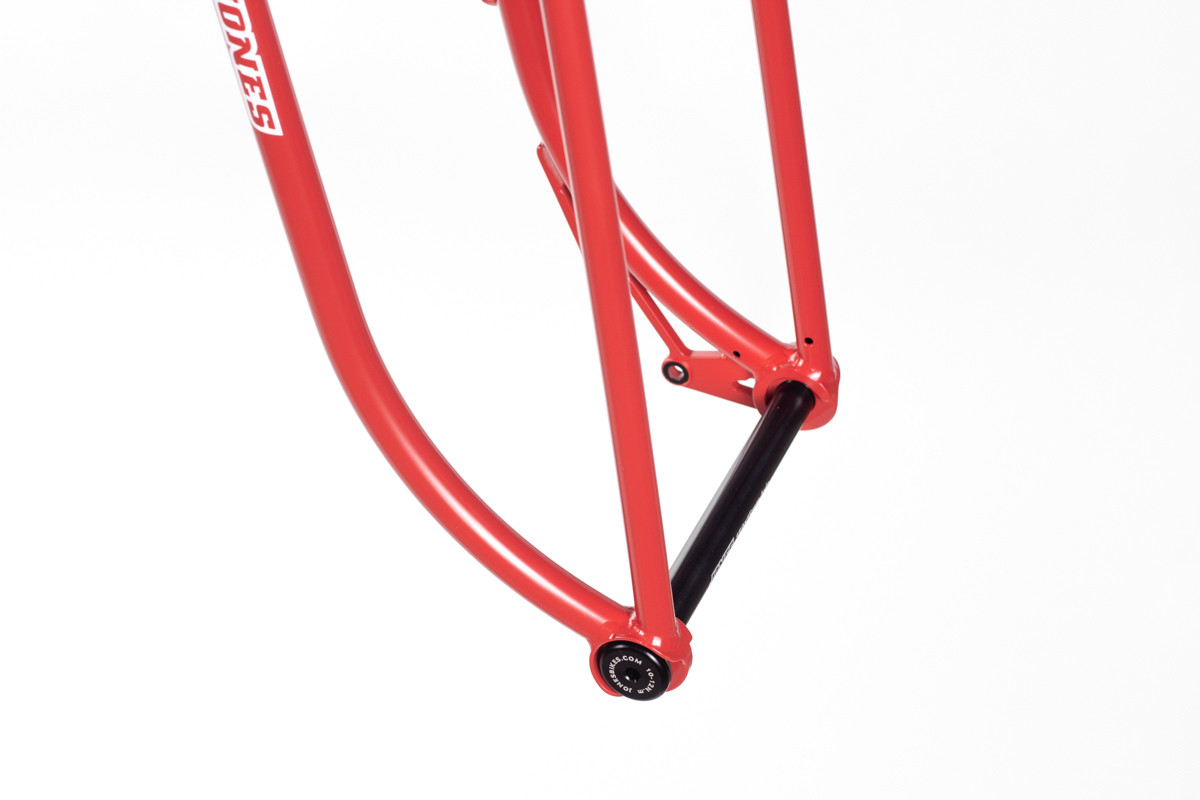

Frameset includes Truss fork


  • Not suspension corrected for a larger, stronger front triangle, shorter, stronger fork and huge frame pack/ water bottle capacity
  • Clearance for 29 x 2.3-3.25" tires
  • Rack and fender mounting bosses

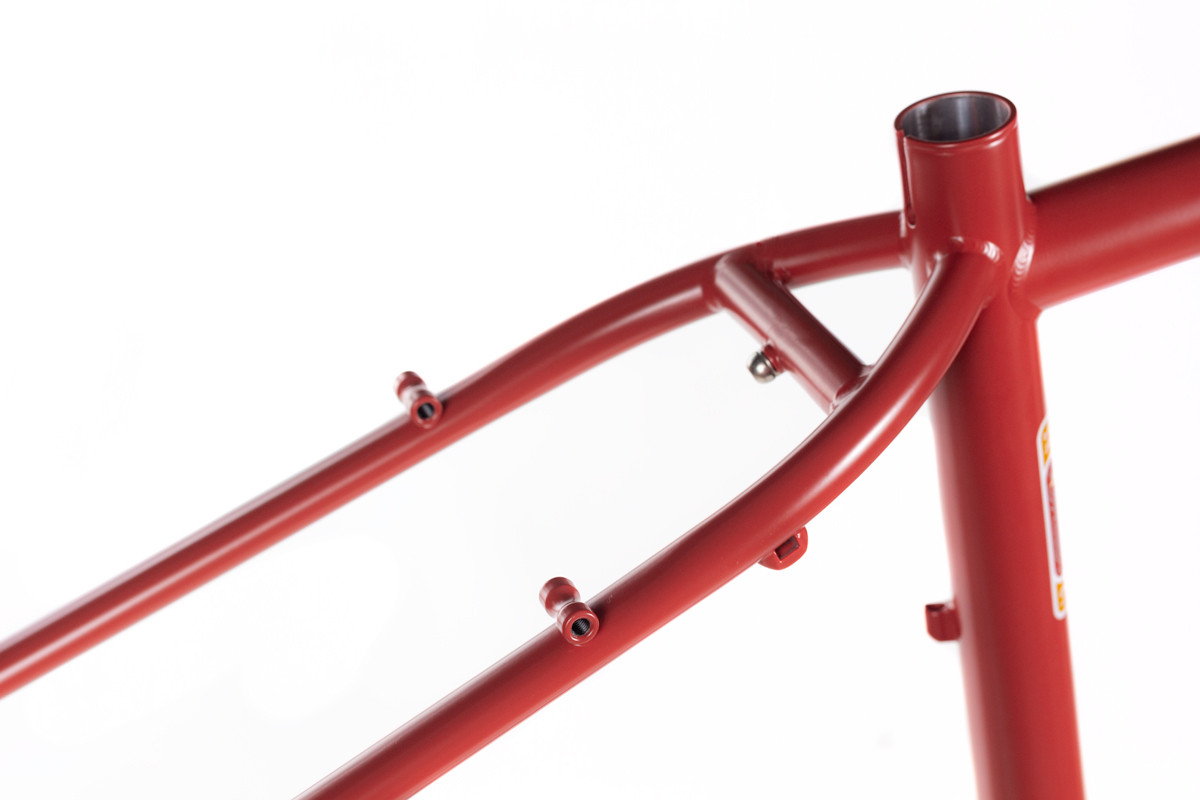

  • Five water bottle mounting locations (six on large size).
  • One triple-boss style mount underneath the downtube

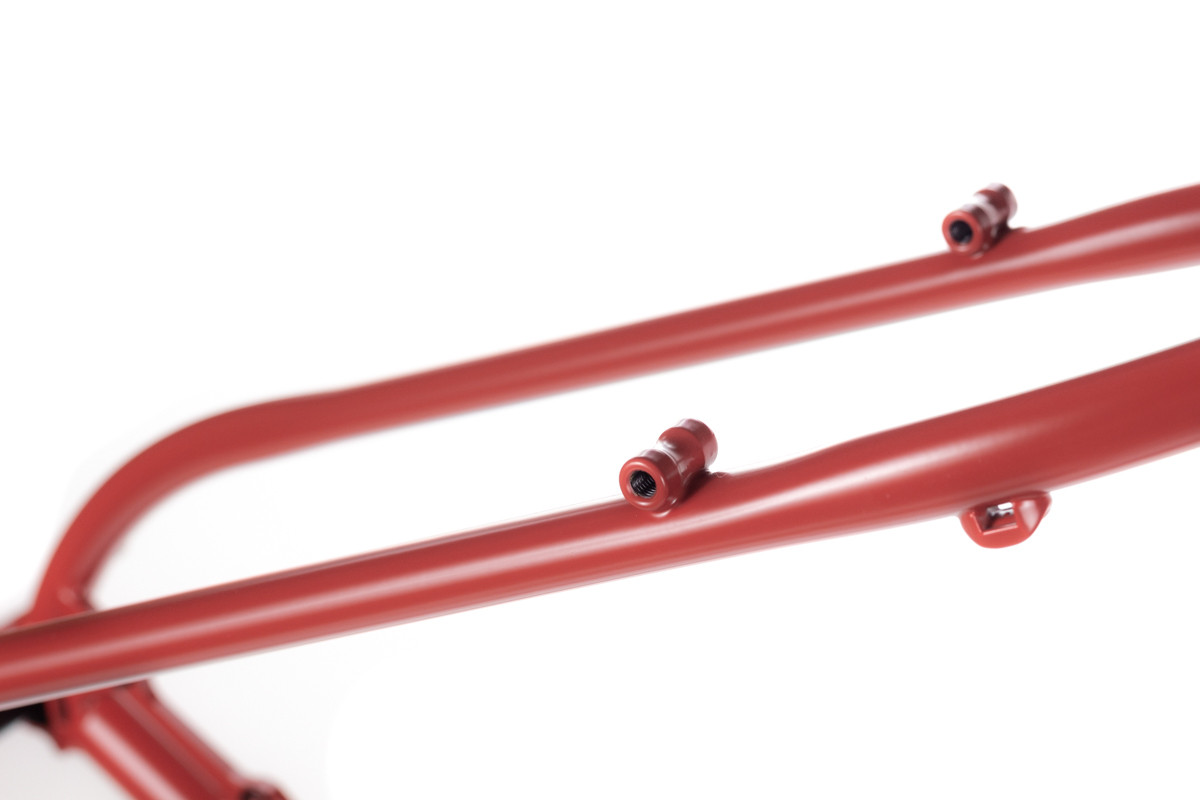

  • Rack bosses on the upper seatstays for ease of mounting racks
  • Low-mount rear disc brake mount for ease of mounting fenders and racks

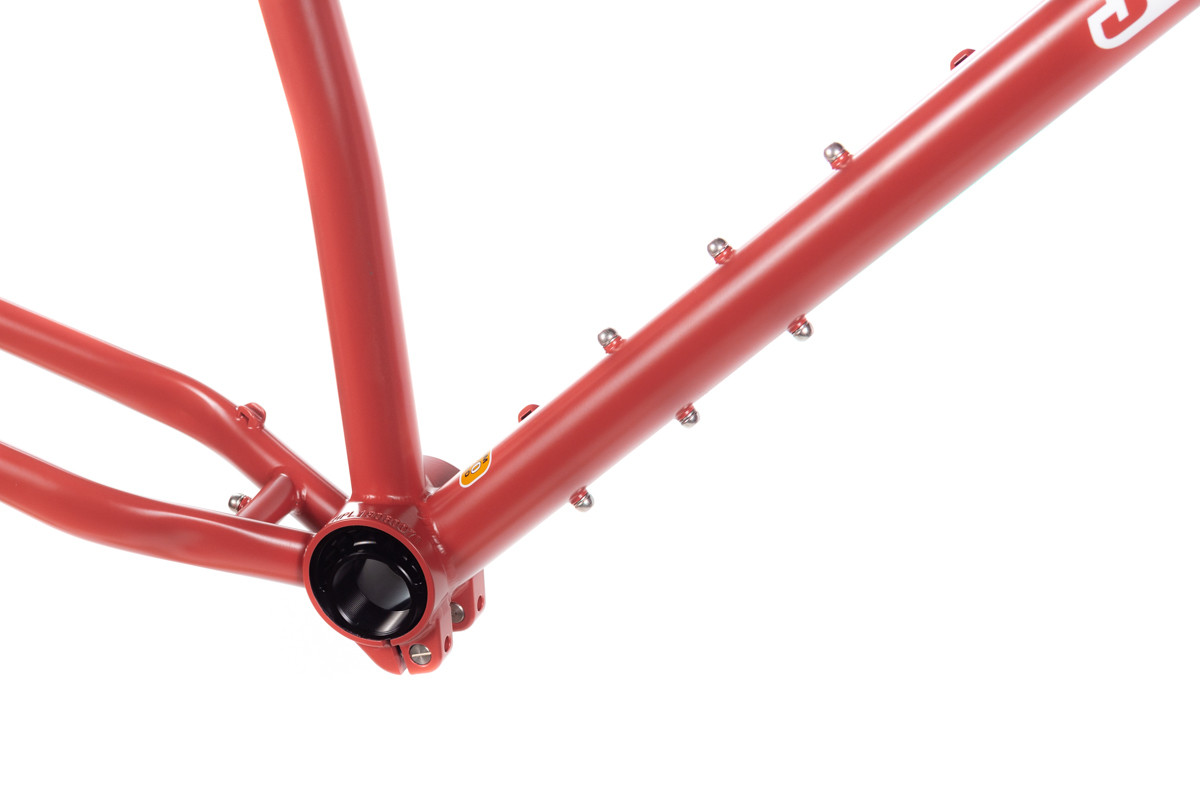

  • 68mm BSA threaded bottom bracket shell (the most common bottom bracket standard). Frames use the new Jones EBB (read more here)
  • Compatible with 1x or 2x "Boost" cranks
  • Standard 148x12mm thru-axle "Boost" rear hub spacing
  • Triple-boss cage mount underneath the downtube

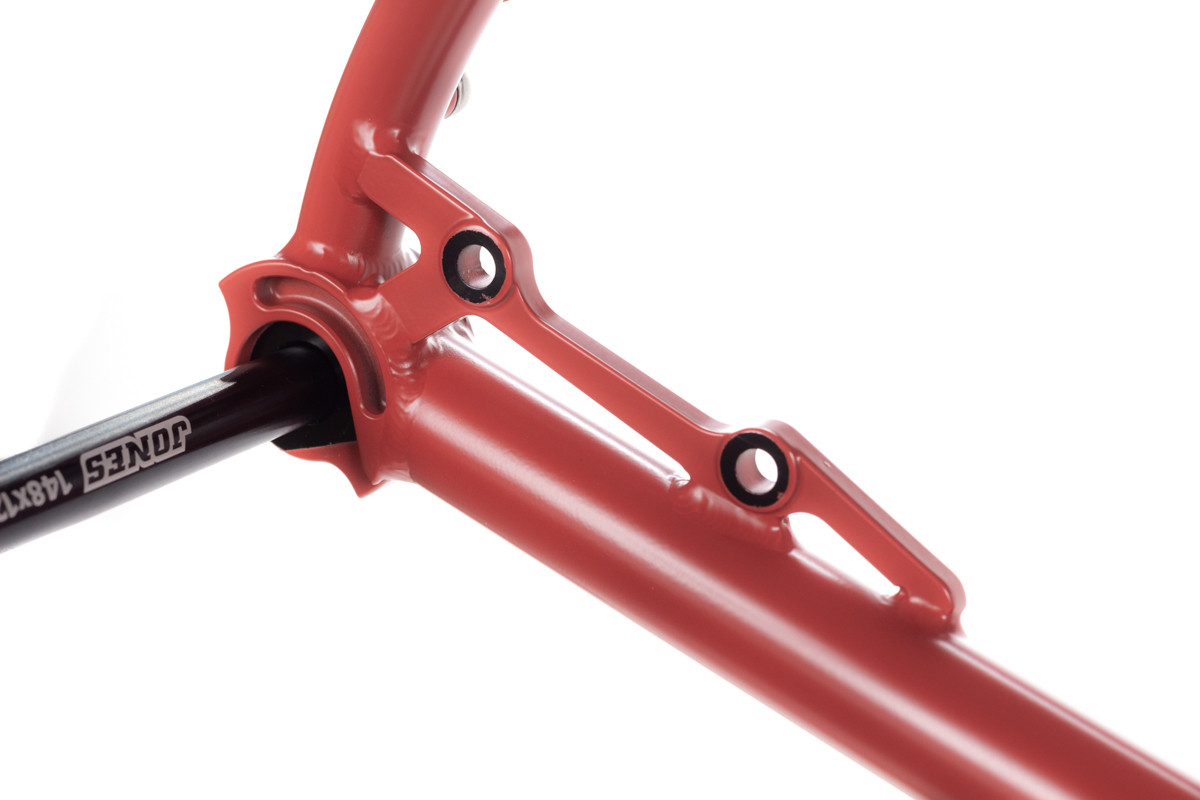

  • Chainstay-mounted I.S. rear disc brake mount for stiffness and ease of mounting fenders and racks
  • 27.2mm seatpost size, 31.8mm seat tube diameter

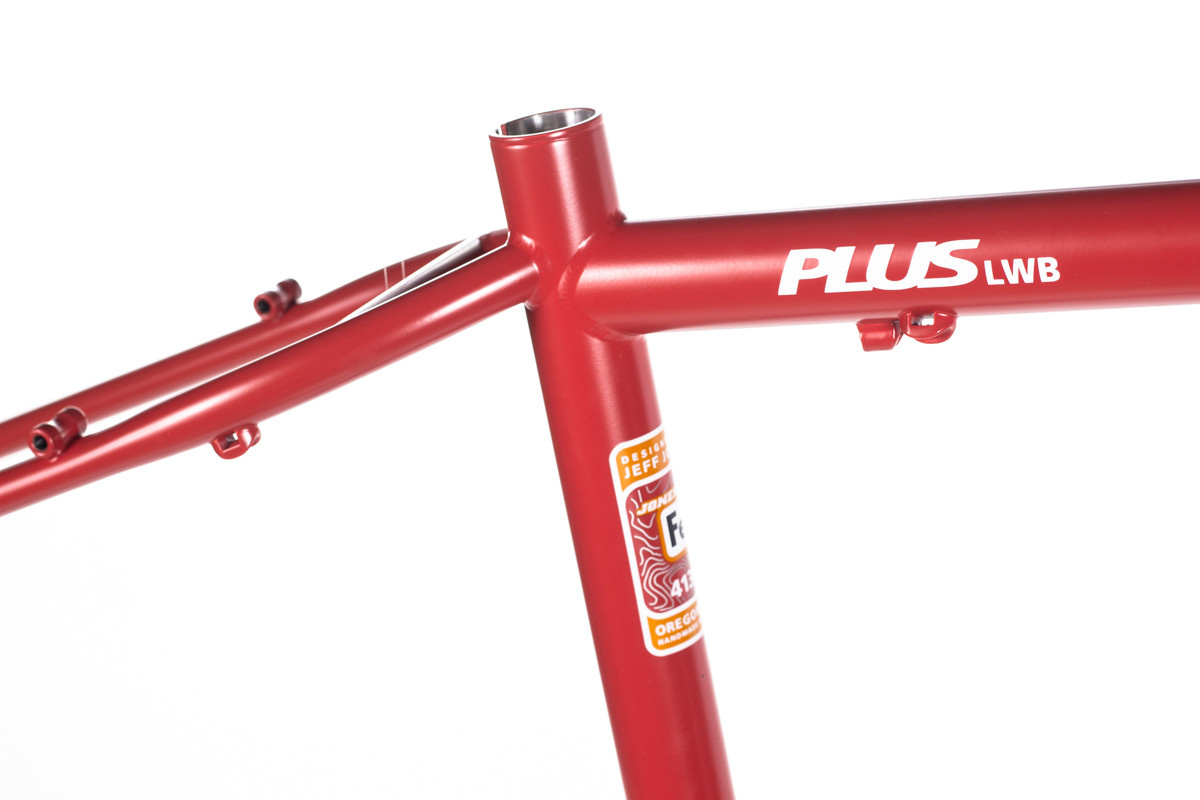

  • Standard 1 1/8" headtube for external bearing headsets such as the Jones H-Set
  • Medium Frame weight (with EBB, all bolts, clips, derailleur hanger, and two TA Bolts): 6 lb 9 oz / 2,x973 grams
  • Large Frame weight (with EBB, all bolts, clips, derailleur hanger, and two TA Bolts): 7 lb  /  3,166 grams

All frames feature an ED Black underlayer to protect the frame from rust. This is a steel frame, steel fork, EBB (bottom bracket), front and rear TA bolts, water bottle bolts, clips, and standard derailleur hanger. Single speed or Shimano Direct Mount hanger are available separately!

Sizing information for LWB Frame & Truss Fork

  • Medium: Rider height 5' 7" - 6' 2", Standover is approximately 31.5"
  • Large: Rider height 6' - 6' 6", Standover is approximately 33"
