Surly Karate Monkey Frameset - Hi-Viz Black
Product number:
FM0317
Manufacturer:
Surly
Manufacturernumber:
FM0317
Directly available:
1
Product information "Surly Karate Monkey Frameset - Hi-Viz Black"

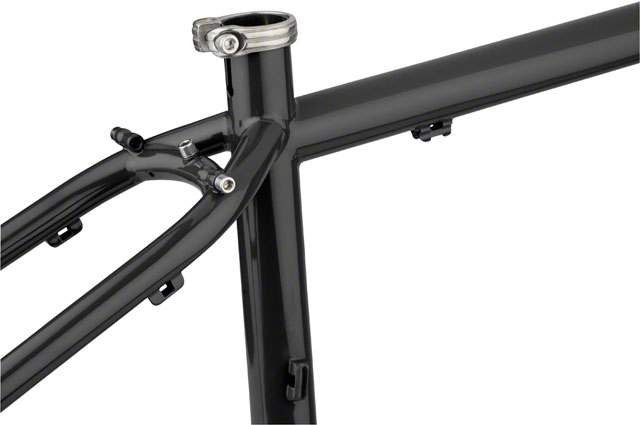

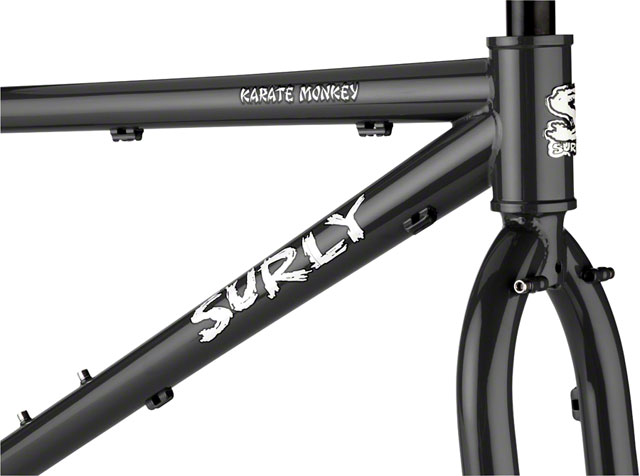

Surly Karate Monkey Frameset
The Karate Monkey features updated, progressive trail geometry, a new tubeset and Surly’s Gnot-Boost rear dropout system. Available in a variety of colors, with multiple drivetrain and wheel size configurations.
Specs:
- 100% Surly 4130 chromoly steel frame and fork; double-butted main triangle and 44mm headtube
- New tubeset uses the same trumpet tubes found on Instigator 2.0 frame
- Front Axle: 15mm Thru x 110mm
- Rear Axle: 12mm Thru x 148mm

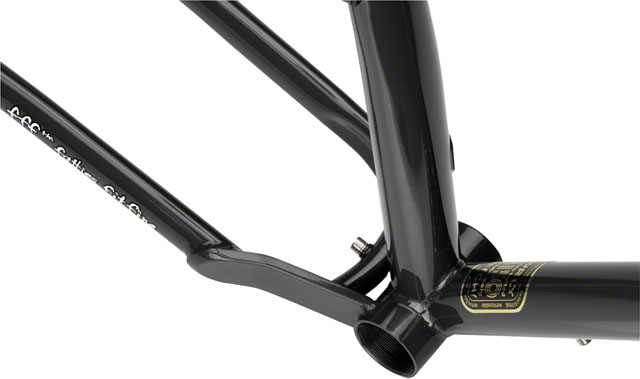

- Rear dropouts with 145mm Gnot-Boost spacing. Works with 142, 148 12mm thru, as well as 135mm w/ 10/12 washer
- Internal dropper seatpost routing
- 30.9mm seat tube ID
- Clearance for 29 x 2.55 or 27.5 x 3” tires
