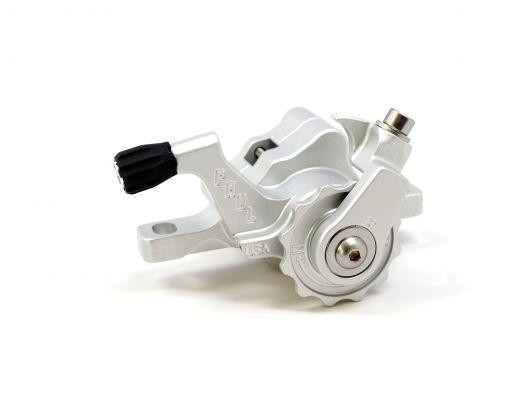

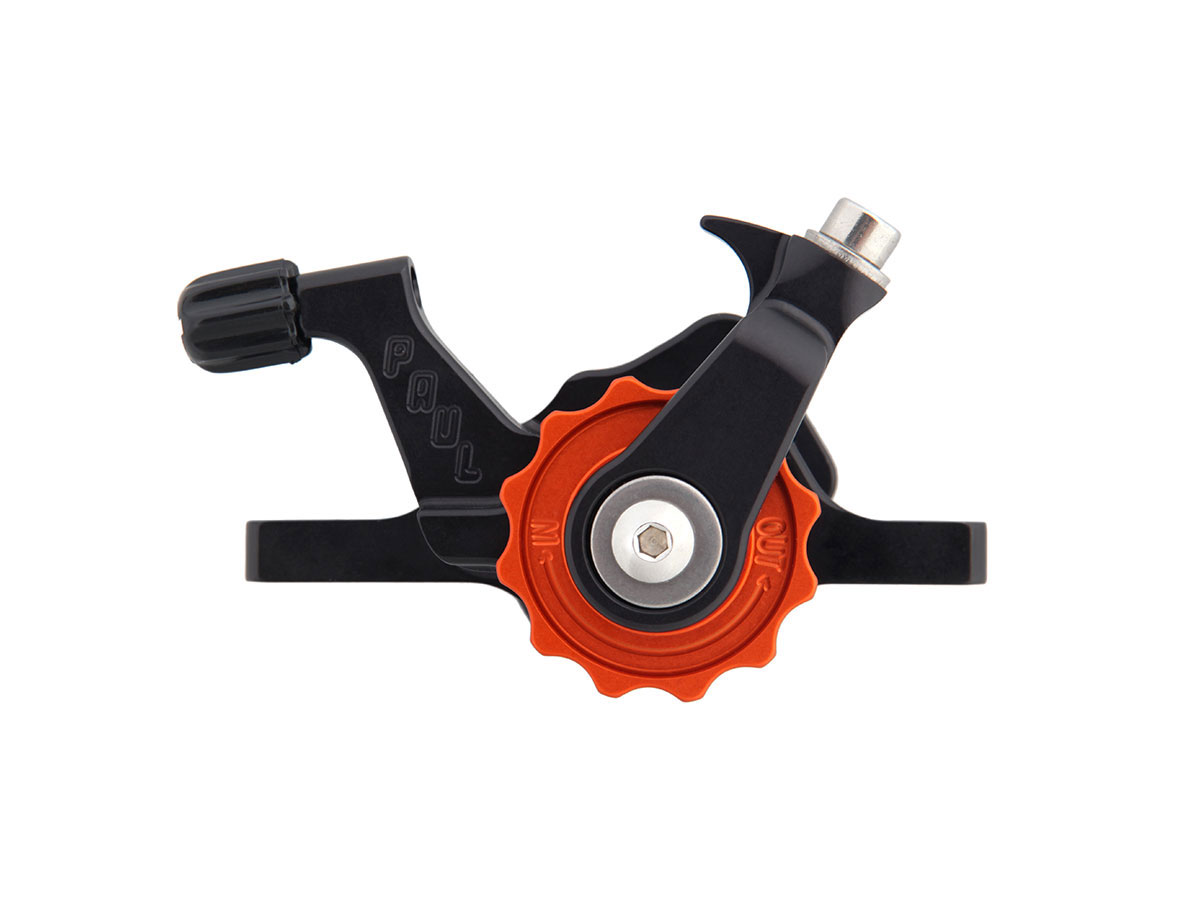

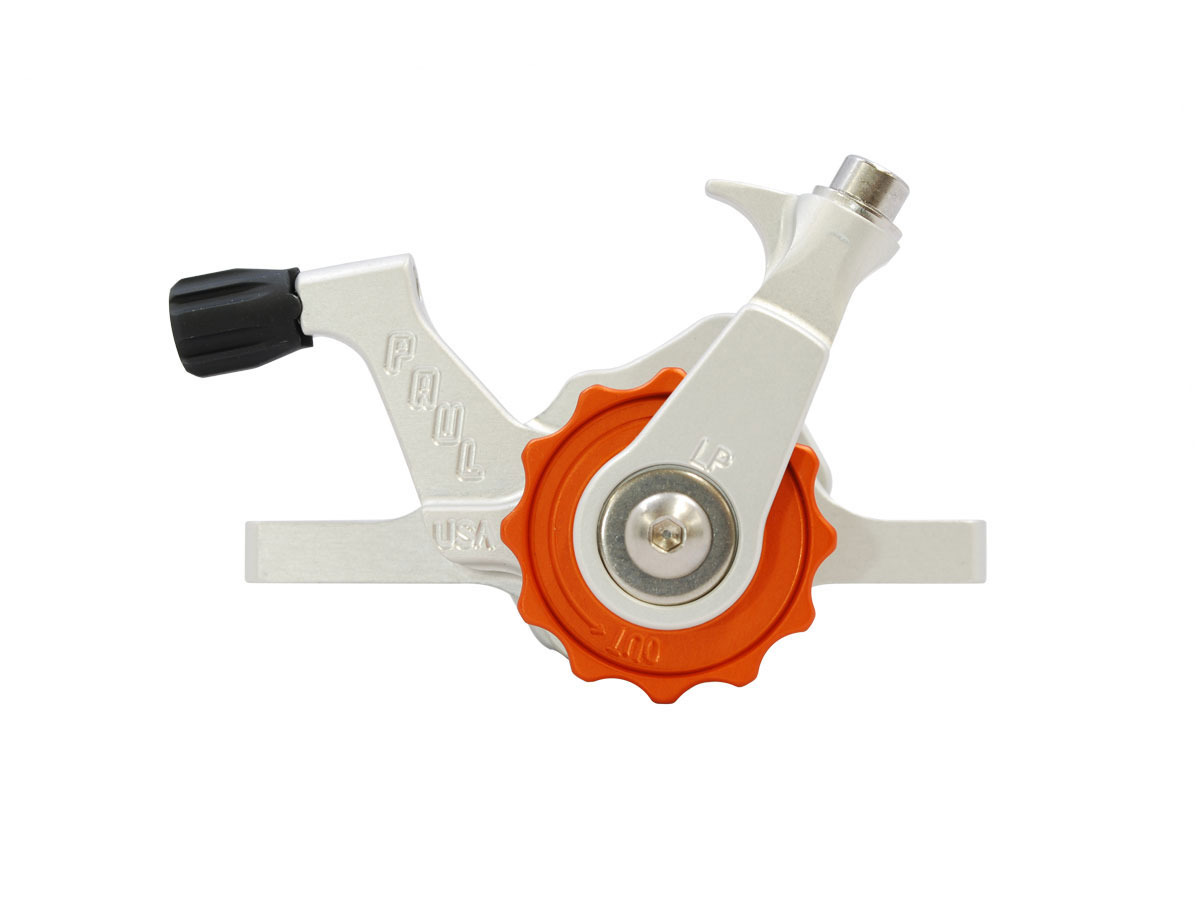

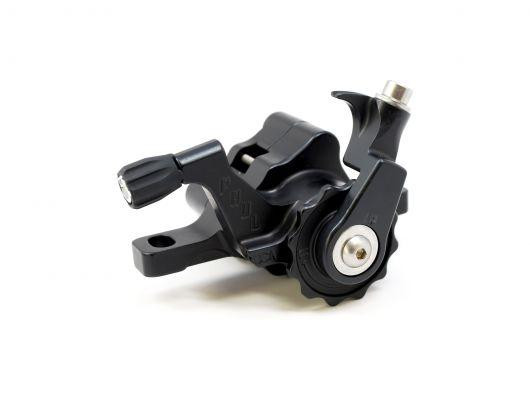

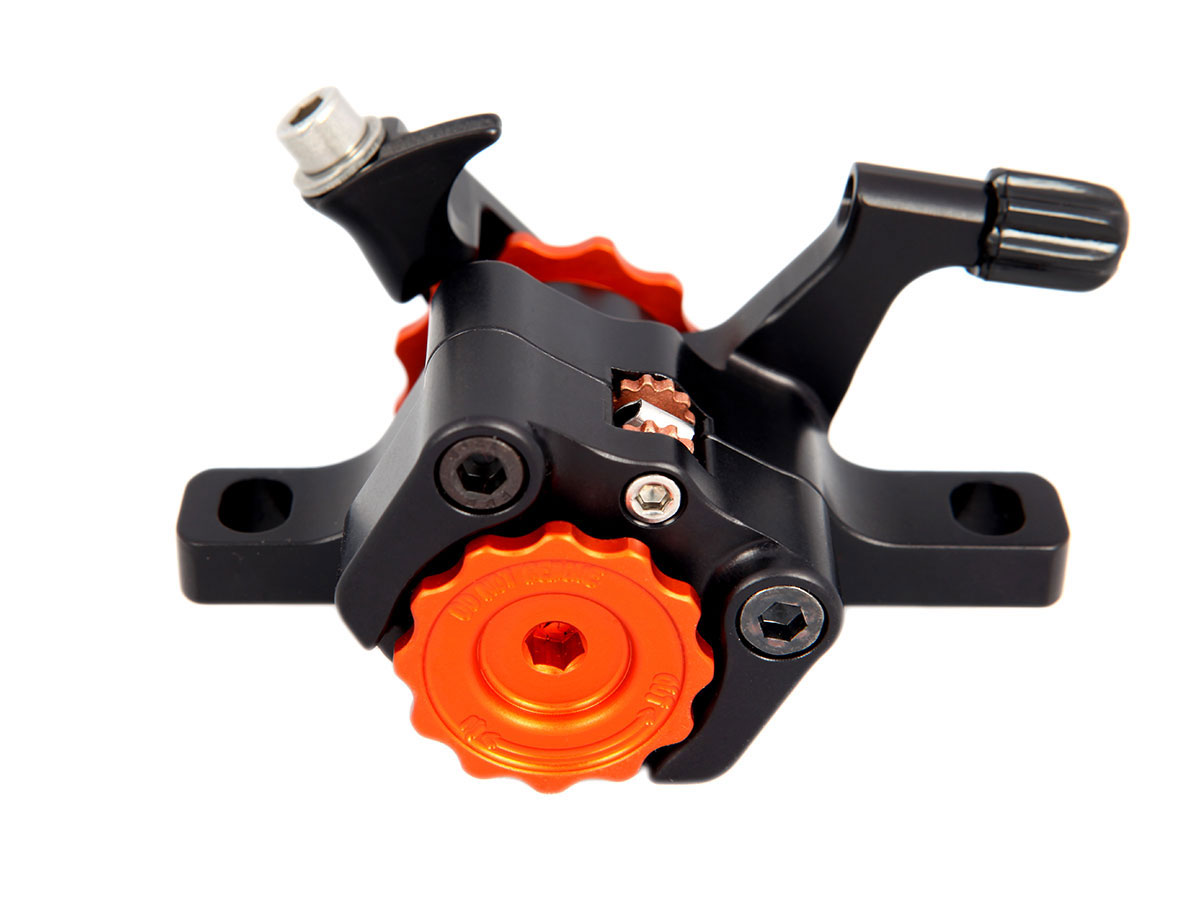

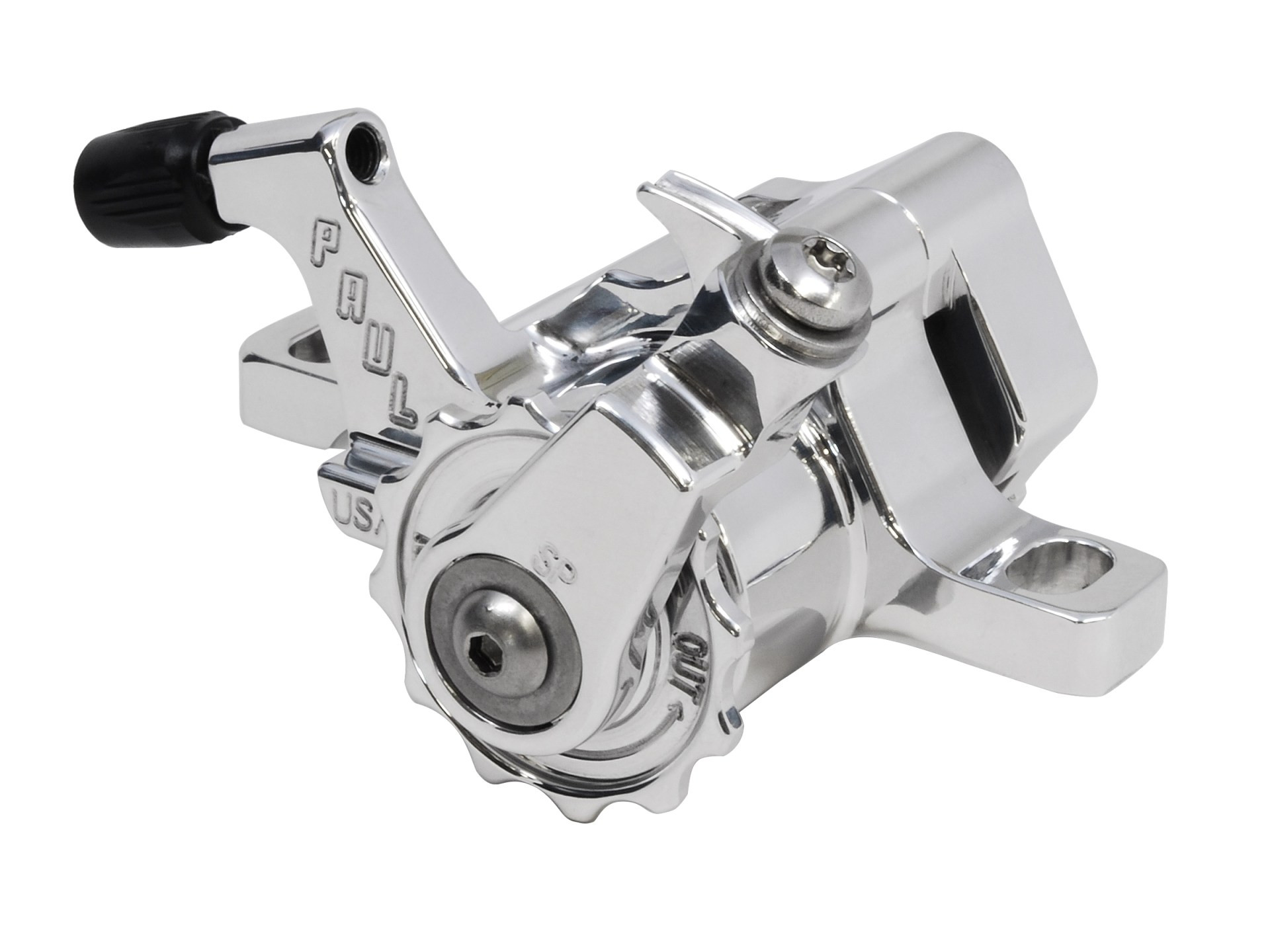

Paul Klamper Disc Caliper PM - long pull

€319.99*

Color
Product number: PC048PWBKLP
Manufacturer: Paul Component
Stock: 2
Product information "Paul Klamper Disc Caliper PM - long pull"

Post Mount standard, use IS adapters to mount to IS frames and forks

Long Pull: This version is designed to work with long-pull brake levers, such as the kind that work with V or linear-pull brakes. The Paul Love Levers work especially well with this model. It also works well with long-pull drop bar levers, such as the Tektro RL520.


Paul's Product Story

When we set out to build this brake, nearly three years ago, we started with a clean slate. Then we tried all manner of whacky ideas but eventually wound our way back to the tried and true ball bearing in a ramp system. From there we concentrated on the details. We made the balls bigger for smoothness and increased pad travel. We hardened the steel where the balls contact the ramps. We used three hardened steel pins to locate the pad actuator. Instead of a plastic thrust washer we used a flat needle roller thrust bearing.

Then we moved onto the caliper body. This took countless drawing revisions and probably 20 prototypes. We added “fangs” to the inner backing plate for stiffness, and beefed up the outer caliper body where needed.

The pad adjusters went through a similar process. We wanted easy adjustability but staying power. For that we designed detents into the circumference, located with spring ball plungers.

We believe this is the best mechanical caliper ever made for a bicycle. It’s available in long pull and short pull, just change the actuating arm, both of which are available separately.

We decided not to make rotors. That’s a manufacturing process we do not do, and they are readily available. The pads are Kool Stop sintered metallic.

As always, allow a couple short rides to bed in the pads.
