Soma Wolverine Frameset V4 - Type A - Storm Blue
The original inspiration for the Wolverine was “monster cross”, but it is seriously so much more. Its geometry is stable enough for off road touring, but sporty enough for all-around adventure and gravel riding. With its sliding dropouts, you can run single-speed, derailleur gearing or hub gearing.

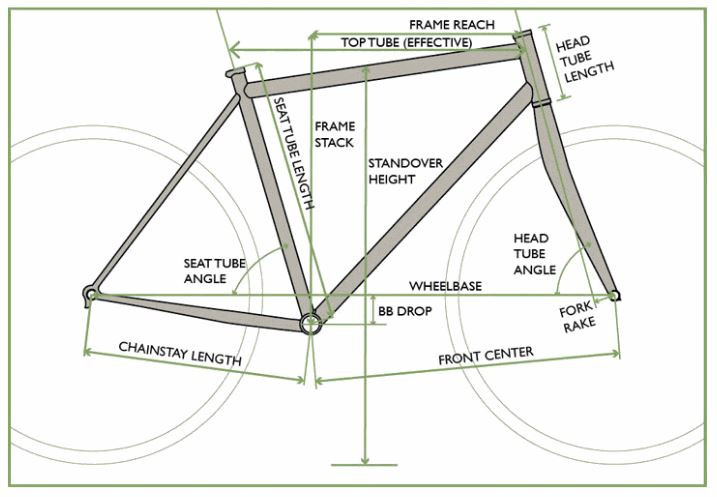

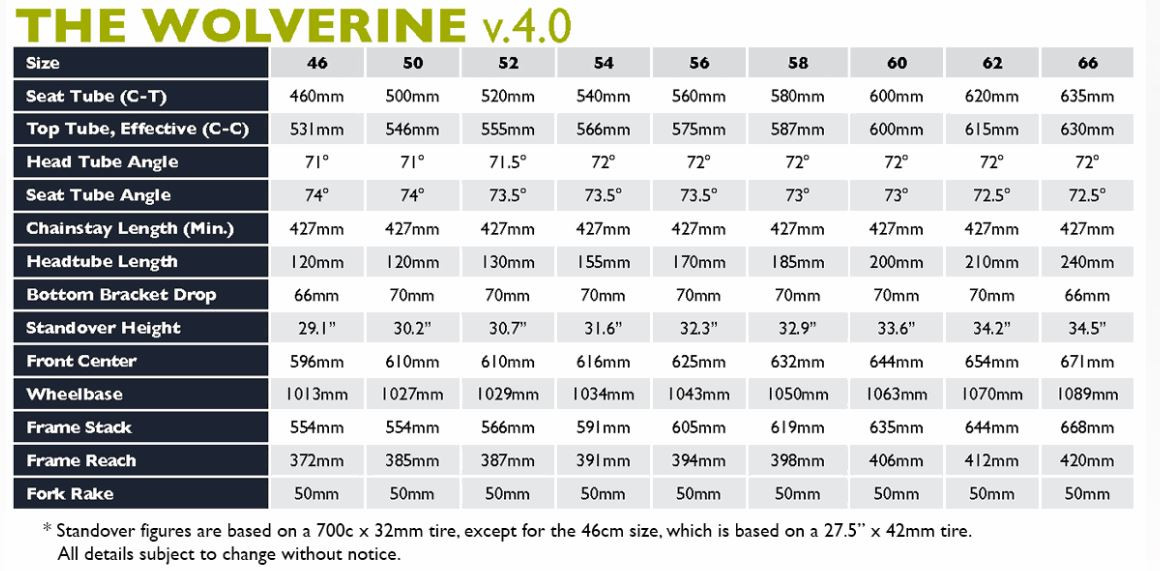

The primary differences between the 3.0 and v. 4 Type-A and B is a new 46cm size, an extra set of water bottle bosses, and additional stack height on most sizes. The Type-A ALSO adopts more modern standards such as 142mm rear thru-axle and a 44mm headtube that will fit 1-1/8 straight steerer or tapered steerer with the proper headset type. There is NO frame break for Belt-Drive like the B-Type has. (See chart for other differences between A and B)
Comes with either Wolverine ThruAxle Steel fork or the Carbon IRD MCX Max Fork
Specs A-Type:
- Tange Prestige heat-treated CrMo tube set
- Clearance for 700x45c tires w/ fenders
- Rear hub spacing/type: 142 x12mm Thru-Axle
- IRD Broski sliding dropouts allow for geared or single-speed builds
- Optional Matching Fork: Unicrown straight blade 15mm thru-axle fork with cage bosses (1-1/8”)
- (No lugged crown fork offered for the Type-A)
- Braze-ons for rear rack and fenders (disc brake-compatible racks only)
- Three sets of water bottle bosses
- 44mm headtube (Use ZS44/28.6-ZS44/30 headset for 1-1/8” steerers) (Use ZS44/28.6 -EC44/40 headsets for 1-1/8”-1-1/2” steerers)
- Sizes: 46, 50, 52, 54, 56, 58. 60, 62 and 66cm (We recommend 650b tires on the 46cm)
- 2.2 Kg (frame)
- Paint: Storm Blue
Carbon Fork
- Axle to crown: 406mm
- Rake: 50mm
- 15mm x 100 thru-axle
- Disc brake mount: Flat mount
- Internal cable routing
- 3-pack mount accessory bosses (3kg capacity per leg)
- Single set of fender eyelets
- Steerer: Aluminum, 1-1/8"-1-1/2" tapered x 350mm
- Weight: 970g (including thru-axle and extra long uncut steerer)
Steel Fork
A stiff unicrown fork option for the Soma Wolverine and other gravel/CX frames with a 1-1/8" headtube. The verson 2 model has slightly lighter construction and a different thru-axle.
- Tange Infinity CrMo
- Unicrown straight blade
- 405mm axle to crown
- 50mm rake
- Fits 700x45mm tires with fenders (this has slightly less clearance than the lugged crown fork
- Double bosses on fork leg to fit low rider pannier rack or cage
- 15 x 100mm thru-axle included
